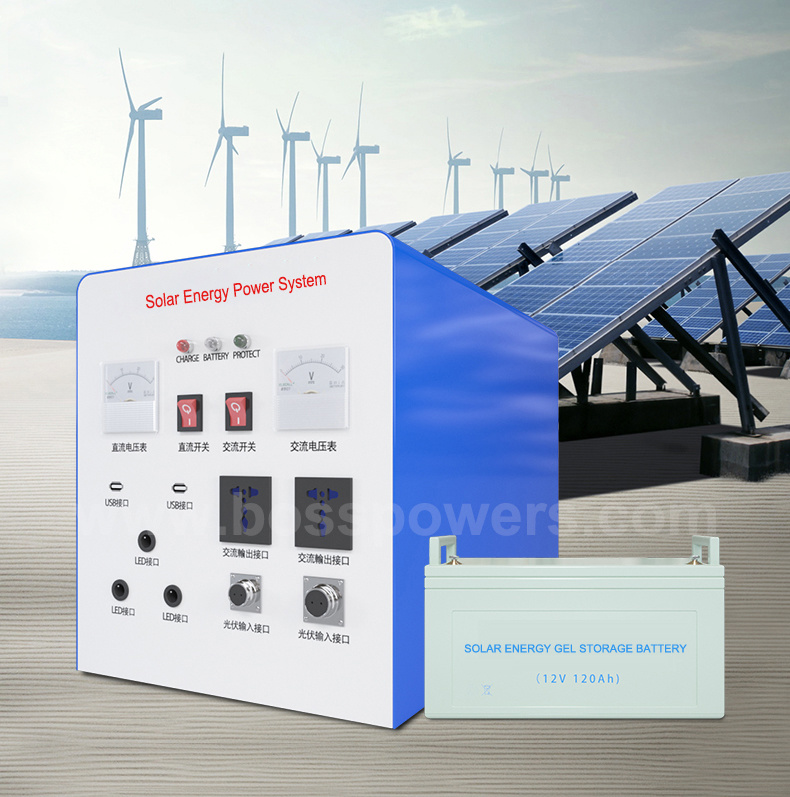

10kw on Grid Home Use Inverter 480watt Panel Power Solar Generator

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • 25 Years

  • AC Single Phase

  • CE, ISO, RoHS

  • 10kw

  • Standard

  • BS-PS-10kw

  • BS-PS-10kw

  • Sun Energy

  • on

  • 480 Watt Mono Solar Panel

  • 10 Kw Growatt Inverte

  • Alminium Alloy Bracket

  • 100 Meters

  • IP67

  • Carton/Plywood Cases

  • As for power


  • China

  • 8541430000

  • 800 Sets / Month

  • US$ 1000/Piece 1 Piece(Min.Order) | Request Sample

10kw on Grid Home Use Inverter 480watt Panel Solar Power Generator

Monocrystalline Solar Panel

Model Type:BS-480M
Peak Power Watts: 480w
Maximum Power Voltage: 37.93V
Maximum Power Current: 12.73A
Open Circuit Voltage: 44.95V
Short Circuit Current: 12.59A
Or we can choose by customized

Growatt 10KW Inverter

Max.DC Input Power: 10KW
Max. DC Input Voltage:1100V
MPPT Voltage Range: 140-1000V
Rated Grid Voltage: 220/380V, 230/400V
Warranty: 5 Years (EU) 10 Years (US)
Wifi Stick For STD, Lan & GPRS Optional.

Mounting Bracket

Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

Residential Roof(Pitched Roof)
Commercial Roof(Flat roof&workshop roof)
Ground Solar Mounting system
Vertical wall solar mounting system
All aluminum structure solar mounting system
Car parking solar mounting system

PV cable
DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool

10kw on Grid Home Use Inverter 480watt Panel Power Solar Generator
10kw on Grid Home Use Inverter 480watt Panel Power Solar Generator
10kw on Grid Home Use Inverter 480watt Panel Power Solar Generator
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the
delivery time is longer.

Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc

Q:What is your MOQ?
A: Above 1pc
Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.
Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your consideration.
Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use. Overloading is prohibited
Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,
our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material
except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration,
our company provides cost parts maintenance for gen-set.
