1500kw Electricity Generation Container Type Generator with Chinese Yuchai Engine

Quantity:




Inquire Add to Basket

Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Speed:
Speed

Model NO.:
BS-YC1875
Conditions of Use:
Land Use
Usage:
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit:
Low Noise
Excitation Mode:
AC Rotating Exciter
Engine:
Yuchai Yc12vc2510L-D20
Alternator:
Stamford
Controller:
Smartgen, Deepsea...
Starting Method:
Electric Start
Power:
1500kw/1875kVA
ATS:
Optional
Color:
as Per Request
Frequency:
50Hz
Voltage:
400V 380V
Transport Package:
Packed in Plywood Cases or Wooden Cases or Foam, E
Specification:
As for power
Trademark:
BOSSPOWER
Origin:
China
HS Code:
850213200
Production Capacity:
100 Sets / Month
Samples:
US$ 210000/Piece 1 Piece(Min.Order) | Request Sample

Product Description

PRODUCT DESCRIPTION

Frequency: 50HZ;Rotating speed: 1500Rpm
Model	Power(KW)	Capacity(KVA)	Rated current(A)	Engine Model	Stamford Type
BS-YC38	30	38	54.1	YC4D60-D21	BS184H
BS-YC45	36	45	65.0	YC4D60-D21	BS224C
BS-YC60	48	60	86.6	YC4D85Z-D20	BS224E
BS-YC63	50	63	90.2	YC4D90Z-D21	BS224E
BS-YC75	60	75	108.3	YC4A100Z-D20	BS224F
BS-YC100	80	100	144.3	YC6B135Z-D20	BS274C
BS-YC113	90	113	162.4	YC6B155L-D21	BS274D
BS-YC125	100	125	180.4	YC6B180L-D20	BS274D
BS-YC150	120	150	216.5	YC6A205L-D20	BS274F
BS-YC180	144	180	259.8	YC6A230L-D20	BS274G
BS-YC188	150	188	270.6	YC6A245L-D21	BS274G
BS-YC200	160	200	288.7	YC6G270L-D20	BS274H
BS-YC250	200	250	360.9	YC6MK350L-D20	BS274K
BS-YC325	260	325	469.1	YC6MK420L-D20	HCI444ES
BS-YC250	280	350	505.2	YC6MJ480L-D20	HCI444E
BS-YC375	300	375	541.3	YC6K500-D30	HCI444FS
BS-YC413	330	413	595.4	YC6K520-D30	HCI444F
BS-YC438	350	438	631.5	YC6K570-D30	HCI544C
BS-YC450	360	450	649.5	YC6T600L-D22	HCI544C
BS-YC500	400	500	721.7	YC6T660L-D20	HCI544C
BS-YC563	450	563	811.9	YC6TD780L-D20	HCI544E
BS-YC625	500	625	902.1	YC6TD840L-D20	HCI544FS
BS-YC675	540	675	974.3	YC6TD900-D31	HCI544F
BS-YC750	600	750	1082.6	YC6C1020L-D20	LVI634B
BS-YC800	640	800	1154.7	YC6C1070L-D20	LVI634C
BS-YC900	720	900	1299.1	YC6C1220L-D20	LVI634D
BS-YC1000	800	1000	1443.4	YC6C1320L-D20	LVI634E
BS-YC1125	900	1125	1623.8	YC6C1520-D31	LVI634F
BS-YC1250	1000	1250	1804.3	YC12VC1680L-D20	LVI634G
BS-YC1500	1200	1500	2165.1	YC12VC2070L-D20	PI734C
BS-YC1688	1350	1688	2435.8	YC12VC2270L-D20	PI734D
BS-YC1875	1500	1875	2706.4	YC12VC2510L-D20	PI734E
BS-YC2000	1600	2000	2886.8	YC12VC2700L-D20	PI734F

More specific parameters to choose.

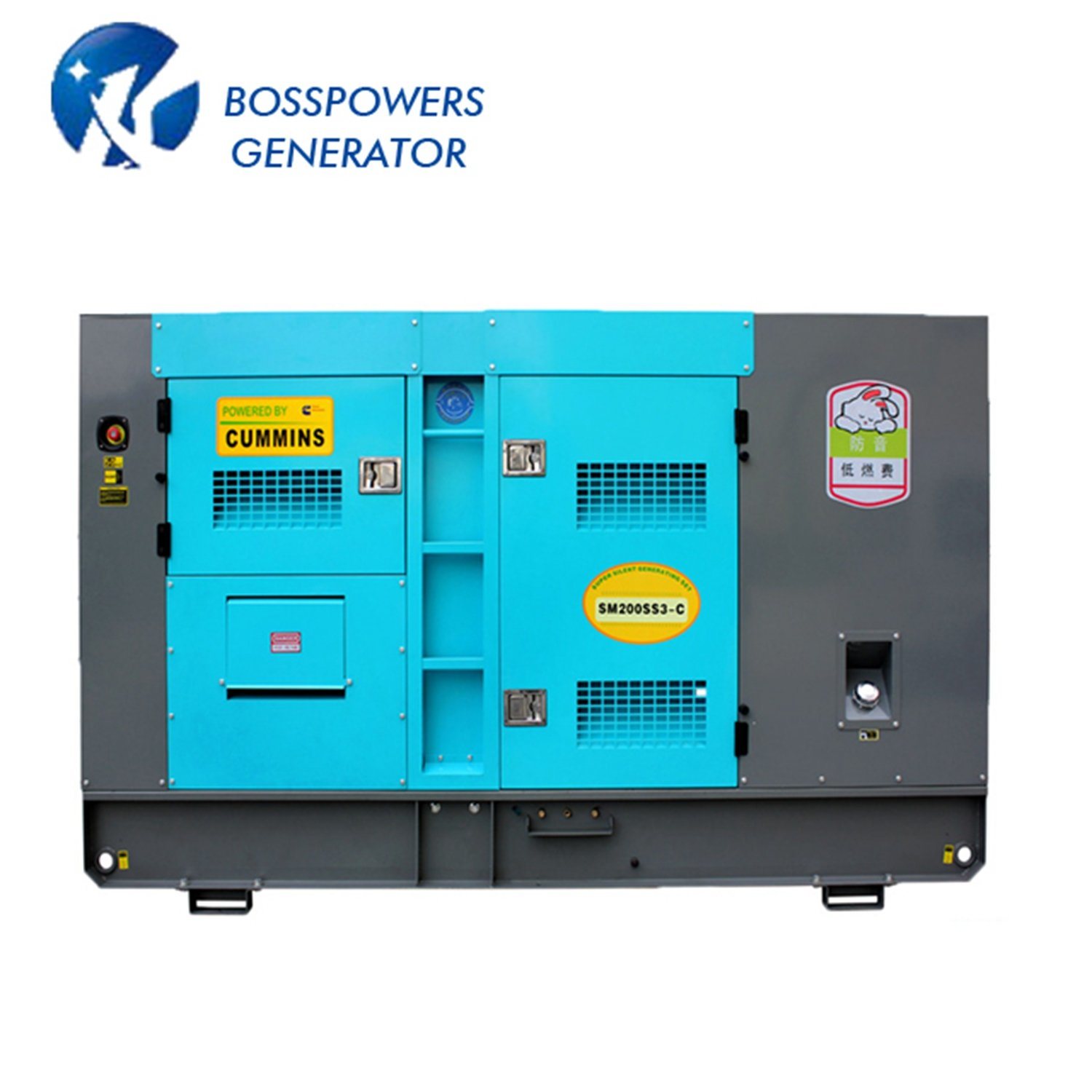

PRODUCT SHOWS

PRODUCT ADVANTAGE

(1)The silent canopy we use cold-rolled sheet, all positions are stronger.

(2)Our spraying plastics all go through pre-treatment of pickling and phosphating, so that the surface of the

painting will not change color even if placed outside for five years.

(3)Canopy color painted by customer's requirement.

(4)Strict test including 50% load,75% load,100% load and 110% Load .

(5)Forklift mouth in base frame for easy loading and discharging.

(6)Logo made by customer's requirement if order quantity ≥10units or a full container.

1500kw Electricity Generation Container Type Generator with Chinese Yuchai Engine

FAQ

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the
delivery time is longer.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc
Q:What is your MOQ?
A: Above 1pc
Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.
Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your consideration.
Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use. Overloading is prohibited
Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,
our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material
except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration,
our company provides cost parts maintenance for gen-set.
