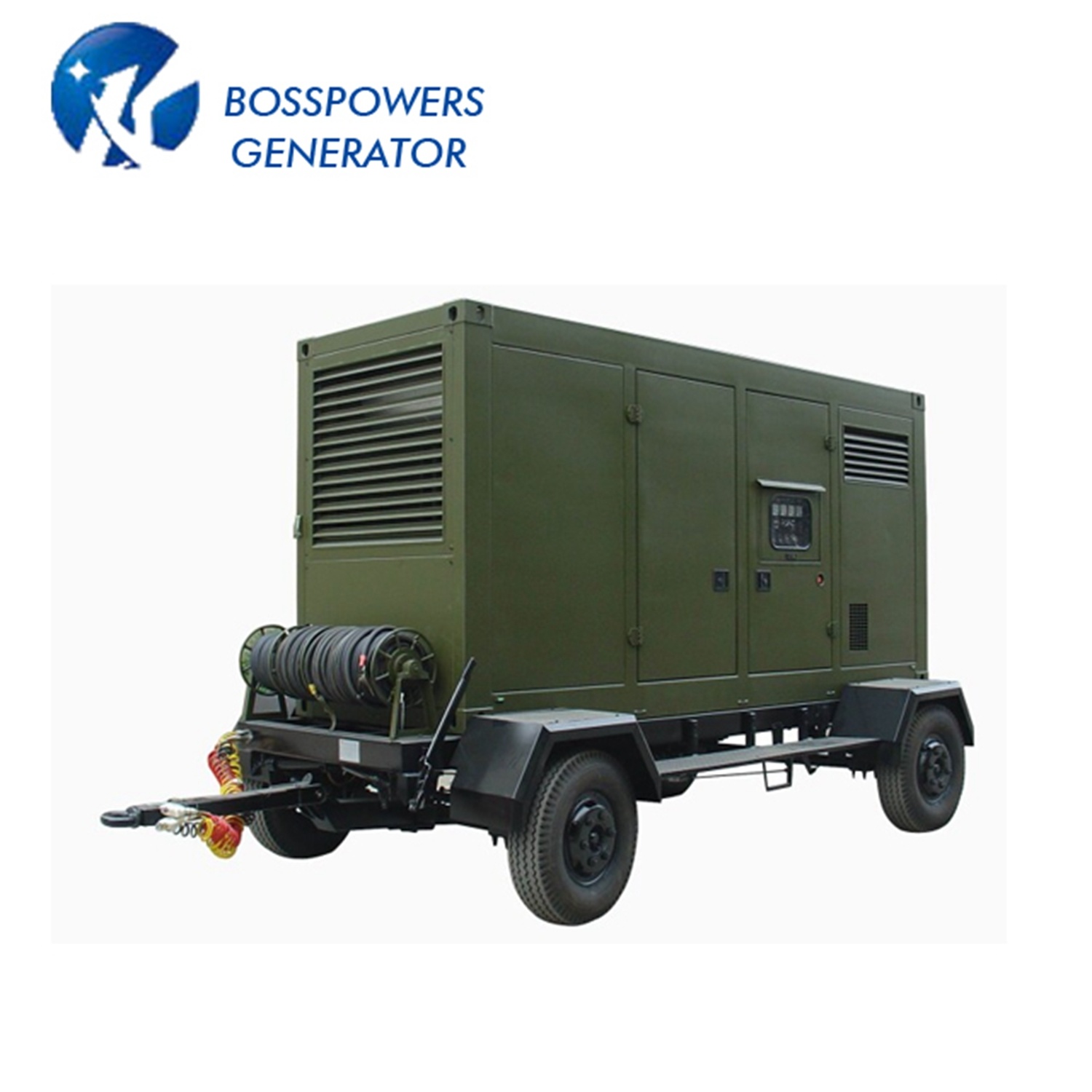

2 or 4 Wheels Water Cooled Mobile Diesel Trailer Generator

Quantity:




Inquire Add to Basket

Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Speed:
Speed

Model NO.:
BS-T
Conditions of Use:
Land Use
Usage:
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit:
Low Noise
Excitation Mode:
AC Rotating Exciter
Engine:
Optional
Alternator:
Stamford
Controller:
Smartgen, Deepsea...
Starting Method:
Electric Start
Power:
5kw - 1800kw
ATS:
Optional
Color:
as Per Request
Frequency:
50Hz/60Hz
Voltage:
400V 380V
Transport Package:
Packed in Plywood Cases or Wooden Cases or Foam, E
Specification:
As for power
Trademark:
BOSSPOWER
Origin:
China
HS Code:
85021100
Production Capacity:
100 Sets / Month
Samples:
US$ 10000/Piece 1 Piece(Min.Order) | Request Sample

Product Description

PRODUCT DESCRIPTION

Frequency: 50/60HZ;Rotating speed: 1500/1800Rpm
Model	Power(KW)	Capacity(KVA)	Rated current(A)	Generator model	Wheel No.
BS-T13	10	13	18	BS164C	2
BS-T15	12	15	21.6	BS164D	2
BS-T19	15	19	27.2	BS184ES	2
BS-T25	20	25	36	BS184F	2
BS-T30	24	30	43.3	BS184G	2
BS-T38	30	38	54	BS184H	2
BS-T50	40	50	72	BS224D	2
BS-T63	50	63	90.2	BS224E	4
BS-T80	64	80	115.8	BS224G	4
BS-T94	75	94	135.3	BS274C	4
BS-T113	90	112.5	162.3	BS274D	4
BS-T125	100	125	180.4	BS274D	4
BS-T150	120	150	216.5	BS274E	4
BS-T188	150	187.5	271	BS274G	4
BS-T250	200	250	361	BS274K	4
BS-T313	250	312.5	451	BS314ES	4
BS-T375	300	375	541	BS314FS	4
BS-T400	320	400	579.2	BS314F	4

More specific parameters to choose.

PRODUCT SHOWS

PRODUCT ADVANTAGE

(1)The silent canopy we use cold-rolled sheet, all positions are stronger.

(2)Our spraying plastics all go through pre-treatment of pickling and phosphating, so that the surface of the

painting will not change color even if placed outside for five years.

(3)Canopy color painted by customer's requirement.

(4)Strict test including 50% load,75% load,100% load and 110% Load .

(5)Forklift mouth in base frame for easy loading and discharging.

(6)Logo made by customer's requirement if order quantity ≥10units or a full container.

2 or 4 Wheels Water Cooled Mobile Diesel Trailer Generator

FAQ

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the
delivery time is longer.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc
Q:What is your MOQ?
A: Above 1pc
Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.
Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your consideration.
Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use. Overloading is prohibited
Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,
our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material
except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration,
our company provides cost parts maintenance for gen-set.
