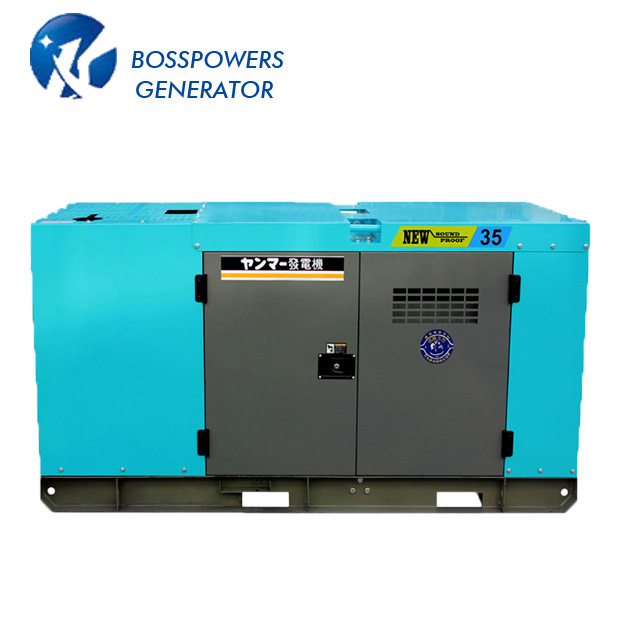

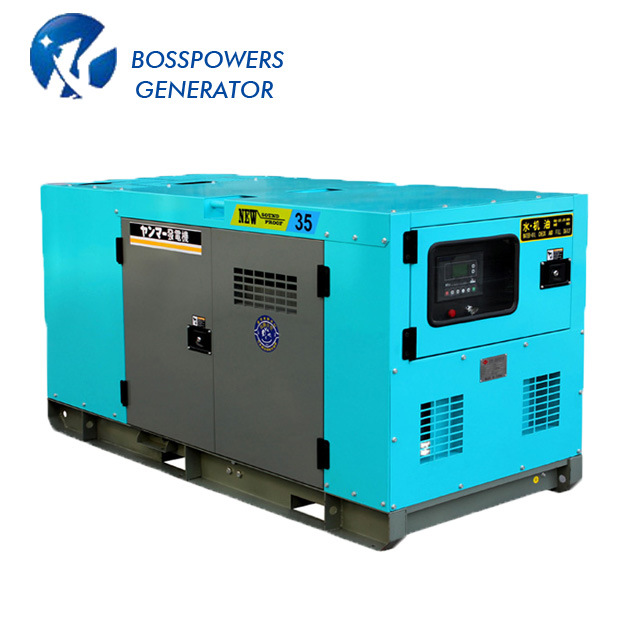

24kw 30kVA Electric Start Yangdong Silent Diesel Generator Set

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • Self-Starting Diesel Generator

  • Fixed

  • Four Stroke

  • Water Cooling

  • AC Three Phase

  • Speed

  • BS-YD30

  • Land Use

  • Common Units, Standby Unit, Emergency Crew

  • Low Noise

  • AC Rotating Exciter

  • Yangdong Y4100d

  • Stamford Type

  • Smartgen,Deepsea...

  • Electric Start

  • 24kw

  • Optional

  • as Per Request

  • 50Hz

  • 400V

  • Packed in Plywood Cases or Wooden Cases or Foam, E

  • As for power


  • China

  • 85021100

  • 100 Sets / Month

  • US$ 3600/Piece 1 Piece(Min.Order) | Request Sample

Frequency: 50HZ;Rotating speed: 1500Rpm
Model Power(KW) Capacity(KVA) Rated current(A) Engine Model Copy Stamford Type
BS-YD10 8 10 14.4 YD380D BS164B
BS-YD11 9 11 16.2 YD385D BS164B
BS-YD13 10 12.5 18.0 YD480D BS164C
BS-YD15 12 15 21.7 YD4KD BS164D
BS-YD16 13 16 23.5 YND485D BS164D
BS-YD19 15 19 27.1 YND490D BS184ES
BS-YD20 16 20 28.9 YSD490D BS184E
BS-YD24 19 24 34.3 Y490PD BS184E
BS-YD25 20 25 36.1 Y495D BS184F
BS-YD30 24 30 43.3 Y4100D BS184G
BS-YD31 25 31 45.1 Y4102D BS184G
BS-YD38 30 37.5 54.1 Y4105D BS184H
BS-YD40 32 40 57.7 Y4102ZD BS184J
Frequency: 60HZ;Rotating speed: 1800Rpm
Model Power(KW) Capacity(KVA) Rated current(A) Engine Model Stamford Type
BS-YD12 9.6 12 17.3 YD380D BS164B
BS-YD13 10 12.5 18.0 YD385D BS164B
BS-YD16 13 16.3 23.5 YD480D BS164C
BS-YD19 15 18.8 27.1 YD4KD BS164D
BS-YD20 16 20 28.9 YND485D BS164D
BS-YD24 19 23.8 34.3 YND490D BS184E
BS-YD25 20 25 36.1 YSD490D BS184E
BS-YD26 21 26.3 37.9 Y490PD BS184E
BS-YD30 24 30 43.3 Y495D BS184F
BS-YD35 28 35 50.5 Y4100D BS184F
BS-YD40 32 40 57.7 Y4102D BS184H
BS-YD45 36 45 65.0 Y4105D BS184H
BS-YD48 38 47.5 68.6 Y4102ZD BS184J
BS-YD53 42 52.5 75.8 Y4102ZLD BS224C
BS-YD56 45 56.3 81.2 Y4105ZLD BS224D
More specific parameters to choose.
Genset Model BS-YD30
Rated Output (KW/KVA) 24KW/30KVA
Max Output (KW/KVA) 26.5KW/33KVA
Phase 3
Power Factor (cos Ø) 0.8
Frequency 50HZ/1500RPM
Rated Voltage (V) 400V
Rated Current (A) 43.2A
Silent Genset Dimensions (MM)--N.W(KGS) 2300*1050*1200--1200KGS
Engine Model Y4100D
Type 4-cycle, direct injection,
Vertical, Water cooling
Cylinder Numbers 4-cylinder
Rated Power (KW/KVA) 32KW/40KVA
Air intake type Natural Aspiration
Displacement(L) 3.707
Compression Ratio 18:1
Firing order 1-3-4-2
Fuel Consumption(g/kw.h) ≤237
Starting Type Electric starting
Bore×Stroke (MM×MM) 100x105
Fuel injection pump Type BQ pump
Governor All-speed, mechanical centrifugal
Fuel delivery pump Single-acting piston-type
Fuel injector Model S Series
Diameter of nozzle hole (mm) Ø0.29
Injection pressure ( Mpa) 21±1
Fuel filter Type Single stage, paper element
Model CX0708B
Lube pump Model Rotor type
Speed(r/min) 1500
Capacity(L/min) 53
Pressure (Kpa) 392
Lube oil filter Type Single stage, paper element
Model JX0814D2
Water pump Model Centrifugal, Volute, Single-suction
Speed(r/min) 4000
Capacity(L/min) 230
Type Silicon rectifying shunt dynamo
Alternator Assy Model JFWZ25
Voltage(V) 28
Power (W) 500
Starting Motor Model QDJ2925D
Voltage(V) 24
Power(KW) 5
Alternator Type Copy Stamford-BS184G
Rated Output (KW/KVA) 24KW/30KVA
Max Output (KW/KVA) 26.5KW/33KVA
Power Factor (cos Ø) 0.8
Excitation Mode single-bearing with SAE ,Brushless synchronous ,Three harmonic exciting
AVR Model SX460
Insulation Class H CLASS


24kw 30kVA Electric Start Yangdong Silent Diesel Generator Set


(1)The silent canopy we use cold-rolled sheet, all positions are stronger.

(2)Our spraying plastics all go through pre-treatment of pickling and phosphating, so that the surface of the

painting will not change color even if placed outside for five years.

(3)Canopy color painted by customer's requirement.

(4)Strict test including 50% load,75% load,100% load and 110% Load .

(5)Forklift mouth in base frame for easy loading and discharging.

(6)Logo made by customer's requirement if order quantity ≥10units or a full container.

24kw 30kVA Electric Start Yangdong Silent Diesel Generator Set
24kw 30kVA Electric Start Yangdong Silent Diesel Generator Set 24kw 30kVA Electric Start Yangdong Silent Diesel Generator Set
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the
delivery time is longer.

Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc

Q:What is your MOQ?
A: Above 1pc
Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.
Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your consideration.
Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use. Overloading is prohibited
Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,
our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material
except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration,
our company provides cost parts maintenance for gen-set.
