Home » Products » Diesel Generator Set » YANMAR Series » 40kVA Soundproof Yanmar Power Diesel Generator Set

40kVA Soundproof Yanmar Power Diesel Generator Set

  • Self-Starting Diesel Generator

  • Fixed

  • Four Stroke

  • Water Cooling

  • AC Three Phase

  • Speed

  • BS-YM40

  • Land Use

  • Common Units, Standby Unit, Emergency Crew

  • Ordinary

  • AC Rotating Exciter

  • Yammar

  • Stamford

  • Smartgen, Deepsea...

  • Electric Start

  • 5kw-54kw

  • Optional

  • as Per Request

  • 50Hz/60Hz

  • 400V 380V

  • Without

  • Packed in Plywood Cases or Wooden Cases or Foam, E

  • As for power


  • China

  • 85021300

  • 100 Sets / Month

  • US$ 4000/Piece 1 Piece(Min.Order) | Request Sample

Power Canopy Diesel Generator 5kw Genset With Brand Engine
Product Description
Frequency: 50HZ;Rotating speed: 1500Rpm
Model Power(KW) Capacity(KVA) Rated current(A) Engine Model Copy Stamford Type
BS-YM5.5 4.4 5.5 7.9 3TNM68-GGE BS164A
BS-YM8 6.56 8.2 11.8 3TNV76-GGE BS164A
BS-YM10 7.92 10 14.3 3TNV82A-GGE BS164B
BS-YM12 9.8 12 17.7 3TNV88-GGE BS164C
BS-YM14 11.3 14 20.4 3TNV84T-GGE BS164D
BS-YM16 13.1 16 23.6 4TNV88-GGE BS184E
BS-YM20 15.8 20 28.5 4TNV84T-GGE BS184E
BS-YM33 26.4 33 47.6 4TNV98-GGE BS184H
BS-YM41 33 41 59.5 4TNV98T-GGE BS184J
BS-YM49 39.3 49 70.9 4TNV106-GGE BS224D
BS-YM57 45.8 57 82.6 4TNV106T-GGE BS224E
Frequency: 60HZ;Rotating speed: 1800Rpm
Model Power(KW) Capacity(KVA) Rated current(A) Engine Model Copy Stamford Type
BS-YM6 5 6 7 3TNM68-GGE 164A
BS-YM9 7 9 10 3TNV76-GGE 164B
BS-YM12 9 12 12 3TNV82A-GGE 164C
BS-YM15 12 15 15 3TNV88-GGE 164D
BS-YM17 14 17 24 3TNV84T-GGE 184E
BS-YM21 17 21 18 4TNV88-GGE 184E
BS-YM26 21 26 24 4TNV84T-GGE 184G
BS-YM41 33 41 36 4TNV98-GGE 224D
BS-YM51 41 51 45 4TNV98T-GGE 224E
BS-YM60 48 60 53 4TNV106-GGE 224F
BS-YM69 55 69 61 4TNV106T-GGE 224G
More specific parameters to choose.

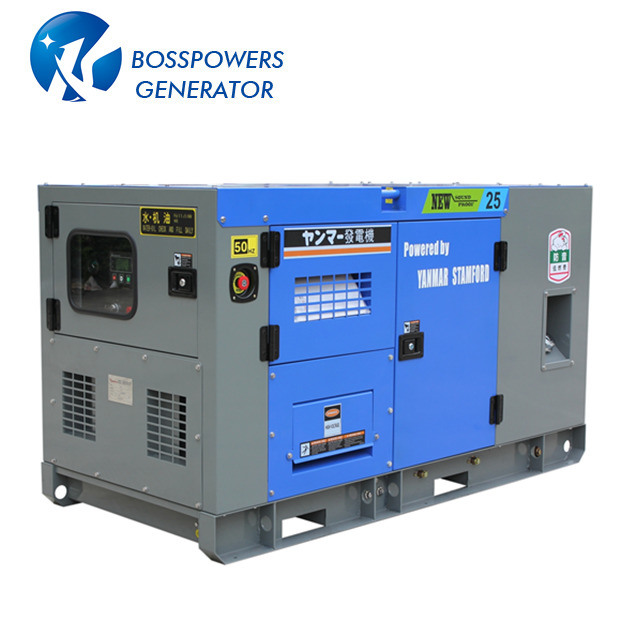

40kVA Soundproof Yanmar Power Diesel Generator Set


(1)The silent canopy we use cold-rolled sheet, all positions are stronger.

(2)Our spraying plastics all go through pre-treatment of pickling and phosphating, so that the surface of the

painting will not change color even if placed outside for five years.

(3)Canopy color painted by customer's requirement.

(4)Strict test including 50% load,75% load,100% load and 110% Load .

(5)Forklift mouth in base frame for easy loading and discharging.

(6)Logo made by customer's requirement if order quantity ≥10units or a full container.

40kVA Soundproof Yanmar Power Diesel Generator Set

40kVA Soundproof Yanmar Power Diesel Generator Set 40kVA Soundproof Yanmar Power Diesel Generator Set
Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the
delivery time is longer.

Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc

Q:What is your MOQ?
A: Above 1pc
Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.
Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your consideration.
Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use. Overloading is prohibited
Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,
our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material
except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration,
our company provides cost parts maintenance for gen-set.
