Home » Products » Diesel Generator Set » YANGDONG Series » Blue Color Canopy Yangdong 56kw 60Hz Single Phase Silent Generator Set

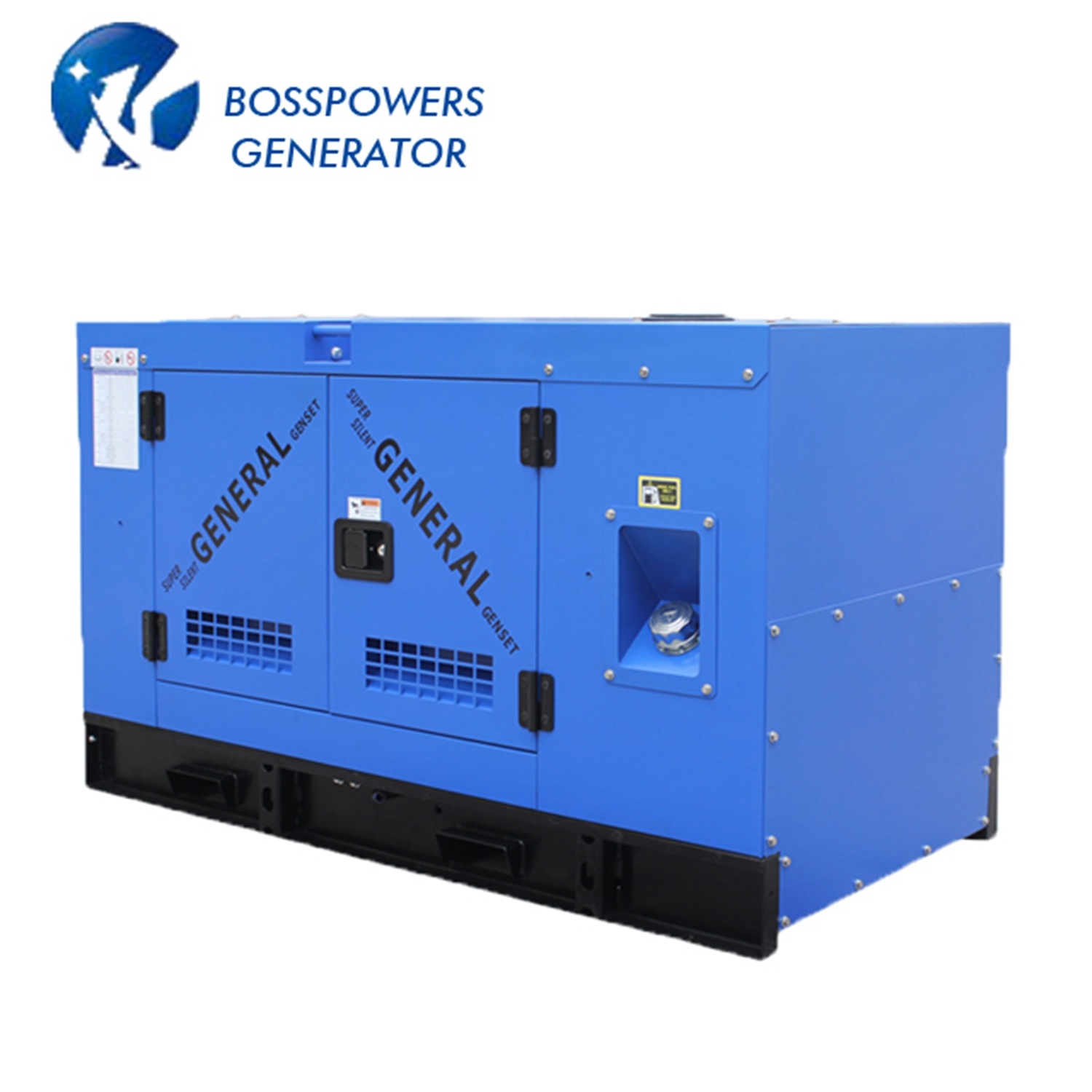

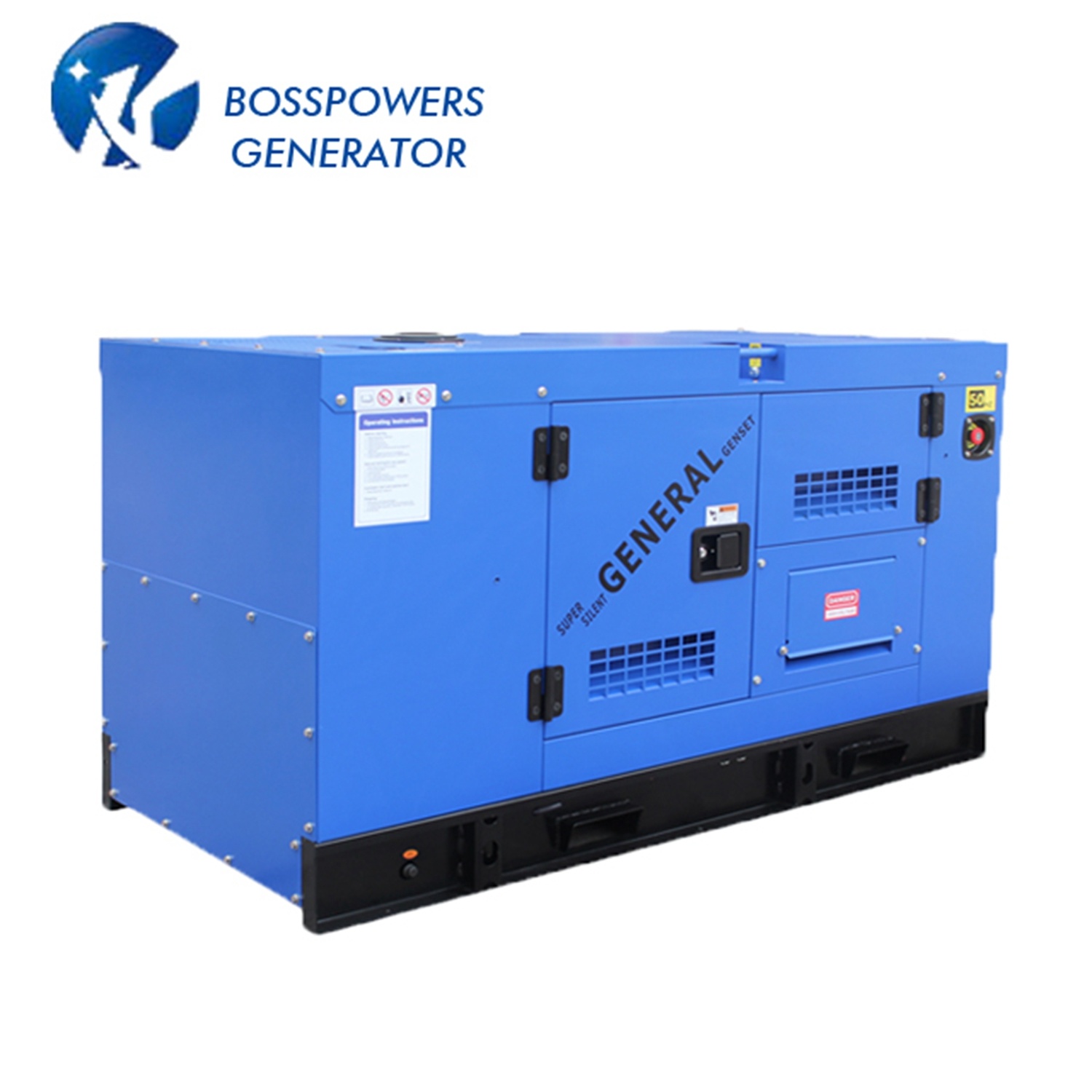

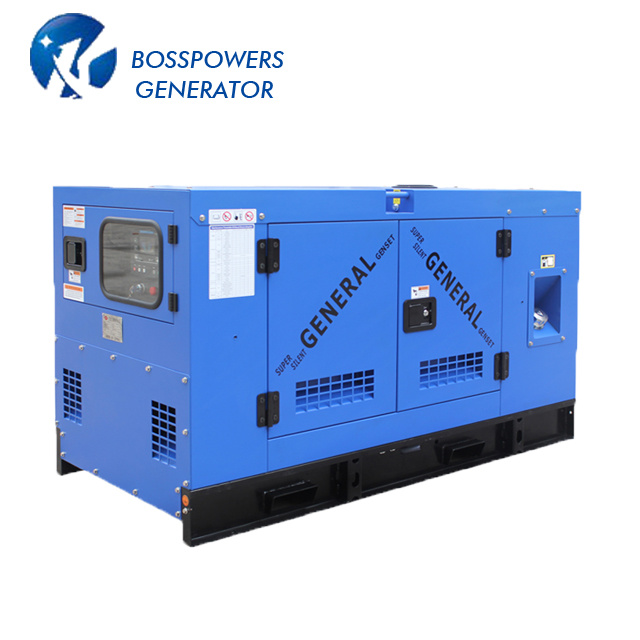

Blue Color Canopy Yangdong 56kw 60Hz Single Phase Silent Generator Set

Quantity:




Inquire Add to Basket

Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Single Phase
Speed:
Speed

Model NO.:
BS-YD56
Conditions of Use:
Land Use
Usage:
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit:
Low Noise
Excitation Mode:
AC Rotating Exciter
Engine:
Yangdong Yd4ezld
Alternator:
Stamford Type
Controller:
Smartgen,Deepsea...
Starting Method:
Electric Start
Power:
56kw/56kVA
ATS:
Optional
Color:
as Per Request
Frequency:
60Hz
Voltage:
220V 230V 240V
Rpm:
1800rpm
Transport Package:
Packed in Plywood Cases or Wooden Cases or Foam, E
Specification:
As for power
Trademark:
BOSSPOWER
Origin:
China
HS Code:
85021100
Production Capacity:
100 Sets / Month
Samples:
US$ 5500/Piece 1 Piece(Min.Order) | Request Sample

Product Description

PRODUCT DESCRIPTION

Frequency: 50HZ;Rotating speed: 1500Rpm
Model	Power(KW)	Capacity(KVA)	Rated current(A)	Engine Model	Copy Stamford Type
BS-YD10	8	10	14.4	YD380D	BS164B
BS-YD11	9	11	16.2	YD385D	BS164B
BS-YD13	10	12.5	18.0	YD480D	BS164C
BS-YD15	12	15	21.7	YD4KD	BS164D
BS-YD16	13	16	23.5	YND485D	BS164D
BS-YD19	15	19	27.1	YND490D	BS184ES
BS-YD20	16	20	28.9	YSD490D	BS184E
BS-YD24	19	24	34.3	Y490PD	BS184E
BS-YD25	20	25	36.1	Y495D	BS184F
BS-YD30	24	30	43.3	Y4100D	BS184G
BS-YD31	25	31	45.1	Y4102D	BS184G
BS-YD38	30	37.5	54.1	Y4105D	BS184H
BS-YD40	32	40	57.7	Y4102ZD	BS184J

Frequency: 60HZ;Rotating speed: 1800Rpm
Model	Power(KW)	Capacity(KVA)	Rated current(A)	Engine Model	Stamford Type
BS-YD12	9.6	12	17.3	YD380D	BS164B
BS-YD13	10	12.5	18.0	YD385D	BS164B
BS-YD16	13	16.3	23.5	YD480D	BS164C
BS-YD19	15	18.8	27.1	YD4KD	BS164D
BS-YD20	16	20	28.9	YND485D	BS164D
BS-YD24	19	23.8	34.3	YND490D	BS184E
BS-YD25	20	25	36.1	YSD490D	BS184E
BS-YD26	21	26.3	37.9	Y490PD	BS184E
BS-YD30	24	30	43.3	Y495D	BS184F
BS-YD35	28	35	50.5	Y4100D	BS184F
BS-YD40	32	40	57.7	Y4102D	BS184H
BS-YD45	36	45	65.0	Y4105D	BS184H
BS-YD48	38	47.5	68.6	Y4102ZD	BS184J
BS-YD53	42	52.5	75.8	Y4102ZLD	BS224C
BS-YD56	45	56.3	81.2	Y4105ZLD	BS224D

More specific parameters to choose.

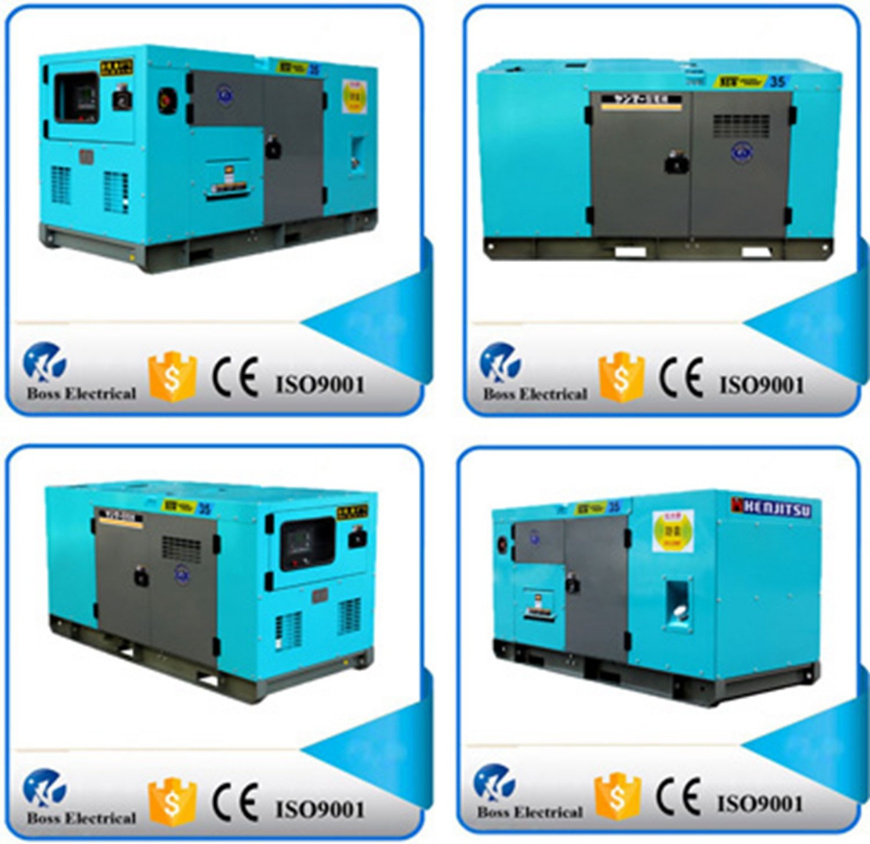

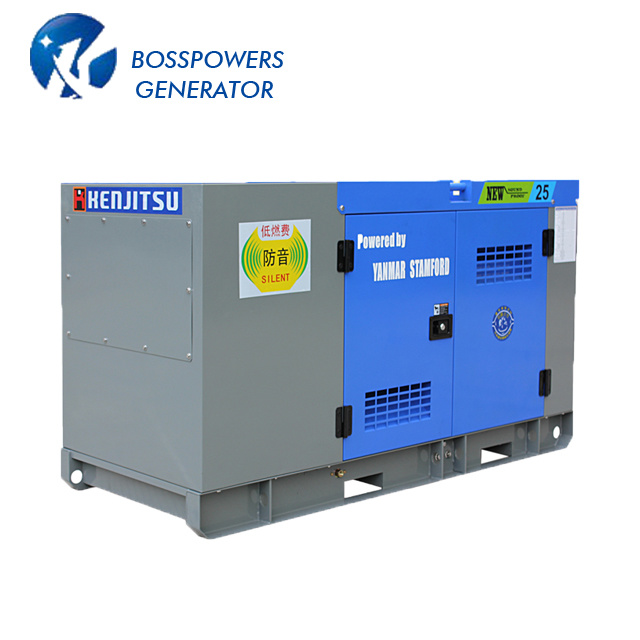

PRODUCT SHOWS

PRODUCT ADVANTAGE

(1)The silent canopy we use cold-rolled sheet, all positions are stronger.

(2)Our spraying plastics all go through pre-treatment of pickling and phosphating, so that the surface of the

painting will not change color even if placed outside for five years.

(3)Canopy color painted by customer's requirement.

(4)Strict test including 50% load,75% load,100% load and 110% Load .

(5)Forklift mouth in base frame for easy loading and discharging.

(6)Logo made by customer's requirement if order quantity ≥10units or a full container.

Blue Color Canopy Yangdong 56kw 60Hz Single Phase Silent Generator Set

FAQ

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the
delivery time is longer.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc
Q:What is your MOQ?
A: Above 1pc
Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.
Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your consideration.
Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use. Overloading is prohibited
Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,
our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material
except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration,
our company provides cost parts maintenance for gen-set.
