Home » Products » Diesel Generator Set » CUMMINS Series » Cummins Stamford 1100kw Industry Heavy Durty Open Type Diesel Power Generator

Cummins Stamford 1100kw Industry Heavy Durty Open Type Diesel Power Generator

Quantity:




Inquire Add to Basket

Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Speed:
Speed

Model NO.:
BS-C1375
Conditions of Use:
Land Use
Usage:
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit:
Low Noise
Excitation Mode:
AC Rotating Exciter
Engine:
Ccec Cummins Kta50-G8
Alternator:
Stamford
Controller:
Smartgen, Deepsea...
Starting Method:
Electric Start
Power:
1100kw 1375kVA
ATS:
Optional
Color:
as Per Request
Frequency:
50Hz
Transport Package:
Packed in Plywood Cases or Wooden Cases or Foam, E
Specification:
As for power
Trademark:
BOSSPOWER
Origin:
China
HS Code:
850213100
Production Capacity:
100 Sets / Month
Samples:
US$ 160000/Piece 1 Piece(Min.Order) | Request Sample

Product Description

PRODUCT DESCRIPTION

Frequency: 50HZ;Rotating speed: 1500Rpm
Model	Power(KW)	Capacity(KVA)	Rated current(A)	Engine Model	Copy Stamford Type
BS-C25	20	25	36	4B3.9-G1	BS184F
BS-C40	32	40	57.7	4BT3.9-G2	BS184J
BS-C70	56	70	101	4BTA3.9-G11	BS224G
BS-C85	68	85	122.7	6BT5.9-G1	BS224G
BS-C120	96	120	173.2	6BTA5.9-G2	BS274D
BS-C140	112	140	202	6BTAA5.9-G2	BS274E
BS-C160	128	160	230.9	6CTA8.3-G1	BS274F
BS-C275	220	275	396.9	NTA855-G1A	BS314D
BS-C350	280	350	505	NTA855-G2A	BS314E
BS-C400	320	400	577.4	NTAA855-G7A	BS354C
BS-C450	360	450	649.5	KTA19-G3	BS354C
BS-C500	400	500	721.7	KTA19-G4	BS354D
BS-C600	480	600	866	KTAA19-G6	BS354E
BS-C750	600	750	1082.6	KTA38-G2	BS404B
BS-C800	640	800	1154.7	KTA38-G2B	BS404C
BS-C900	720	900	1299	KTA38-G2A	BS404D
BS-C800	800	1000	1443.4	KTA38-G5	BS404E
BS-C1250	1000	1250	1804.3	KTA50-G3	BS404G

Frequency: 60HZ;Rotating speed: 1800Rpm
Model	Power(KW)	Capacity(KVA)	Rated current(A)	Engine Model	Copy Stamford Type
BS-C29	23	29	41.5	4B3.9-G1	184E
BS-C43	34	43	61.3	4BT3.9-G1	184H
BS-C63	50	63	90.2	4BTA3.9-G2	224D
BS-C80	64	80	115.5	4BTA3.9-G11	224F
BS-C94	75	94	135.3	6BT5.9-G2	224G
BS-C125	100	125	180.4	6BTA5.9-G2	274D
BS-C150	120	150	216.5	6BTAA5.9-G2	274E
BS-C188	150	188	270.6	6CTA8.3-G2	274F
BS-C250	200	250	360.9	NT855-GA	274J
BS-C394	315	394	568.3	NTA855-G3	314E
BS-C438	350	438	631.5	KTA19-G2	314F
BS-C513	410	513	739.8	KTA19-G3	354C
BS-C625	500	625	902	KTAA19-G5	354D
BS-C688	550	688	992.3	KTAA19-G6A	354E
BS-C775	620	775	1118.6	KT38-G	354F
BS-C906	725	906	1308	KT38-G2	404C
BS-C1000	800	1000	1443.4	KT38-G2A	404D

More specific parameters to choose and we can provide original Stamford generator.

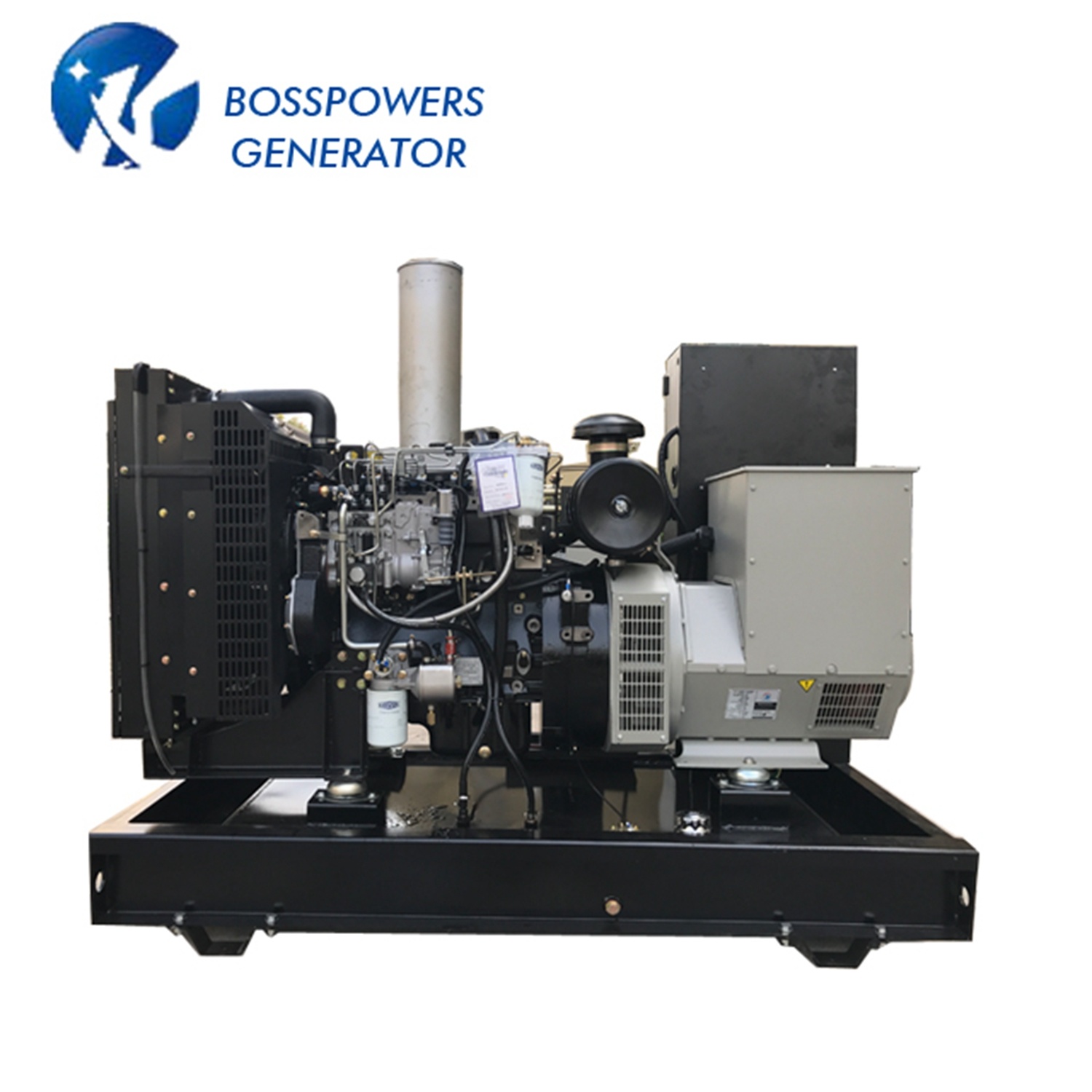

PRODUCT SHOWS

PRODUCT ADVANTAGE

(1)The silent canopy we use cold-rolled sheet, all positions are stronger.

(2)Our spraying plastics all go through pre-treatment of pickling and phosphating, so that the surface of the

painting will not change color even if placed outside for five years.

(3)Canopy color painted by customer's requirement.

(4)Strict test including 50% load,75% load,100% load and 110% Load .

(5)Forklift mouth in base frame for easy loading and discharging.

(6)Logo made by customer's requirement if order quantity ≥10units or a full container.

Cummins Stamford 1100kw Industry Heavy Durty Open Type Diesel Power Generator

FAQ

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the
delivery time is longer.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc
Q:What is your MOQ?
A: Above 1pc
Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.
Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your consideration.
Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use. Overloading is prohibited
Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,
our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material
except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration,
our company provides cost parts maintenance for gen-set.
