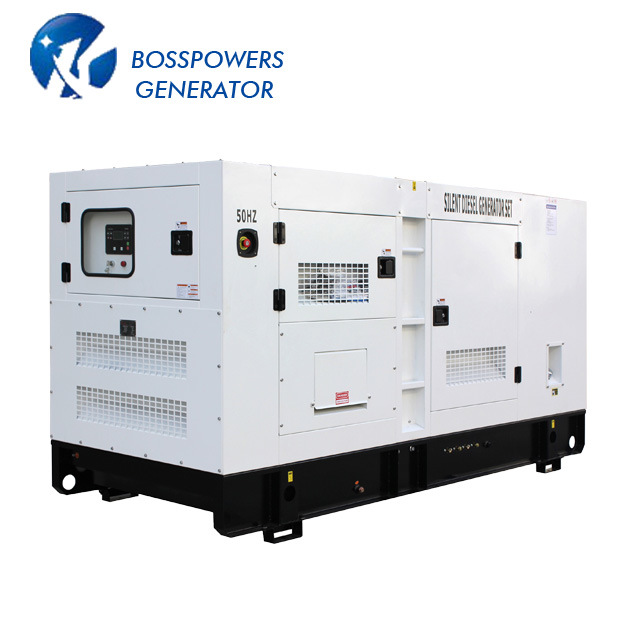

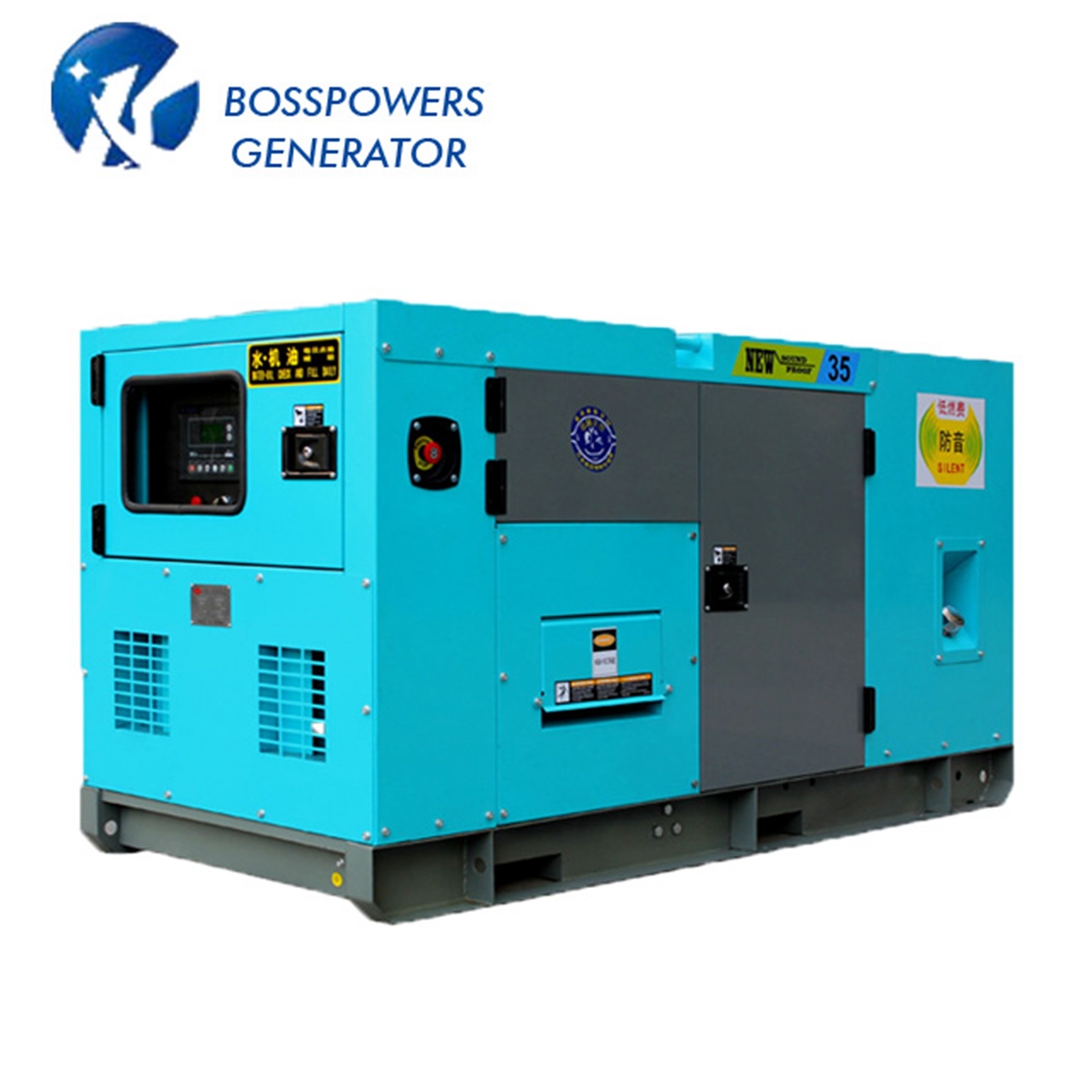

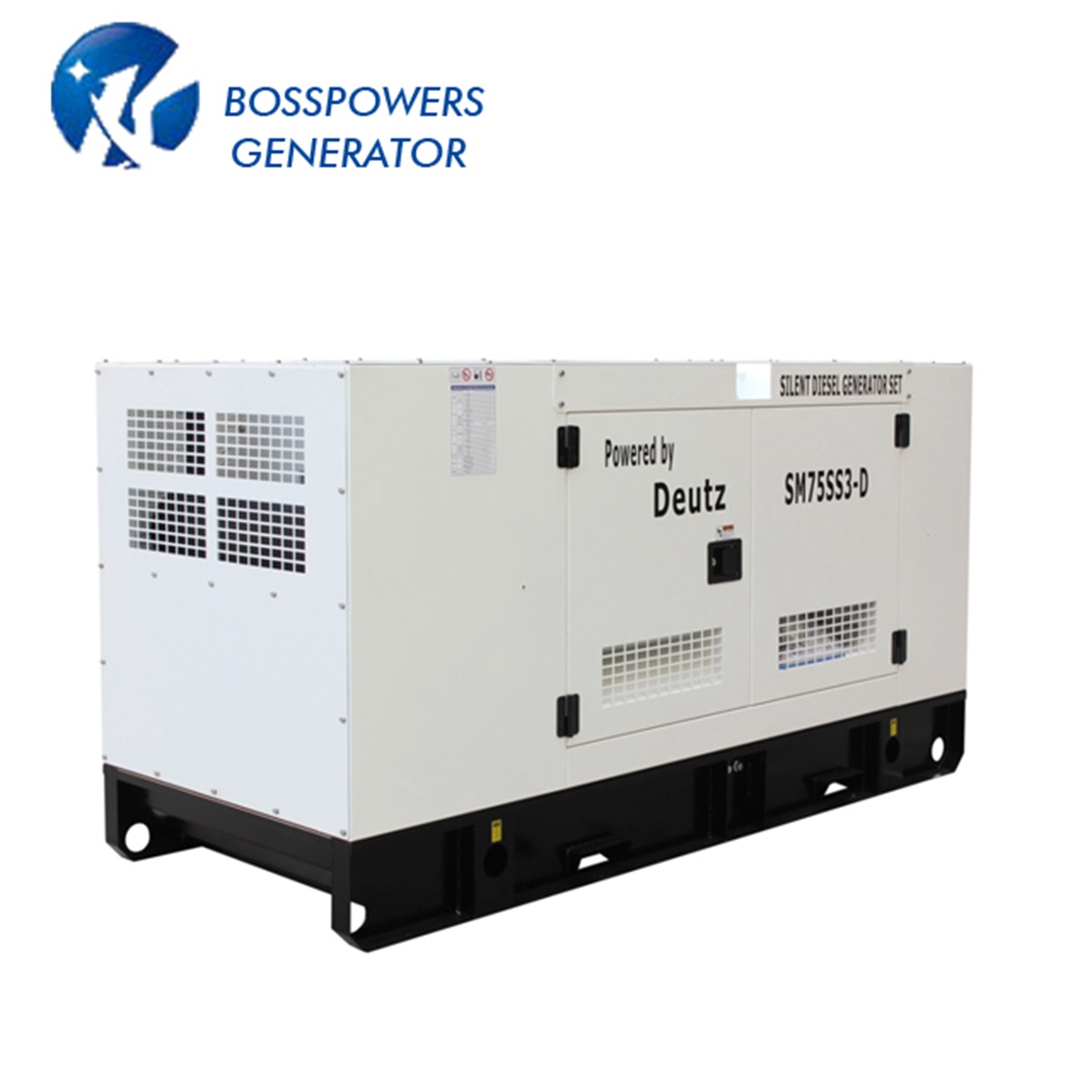

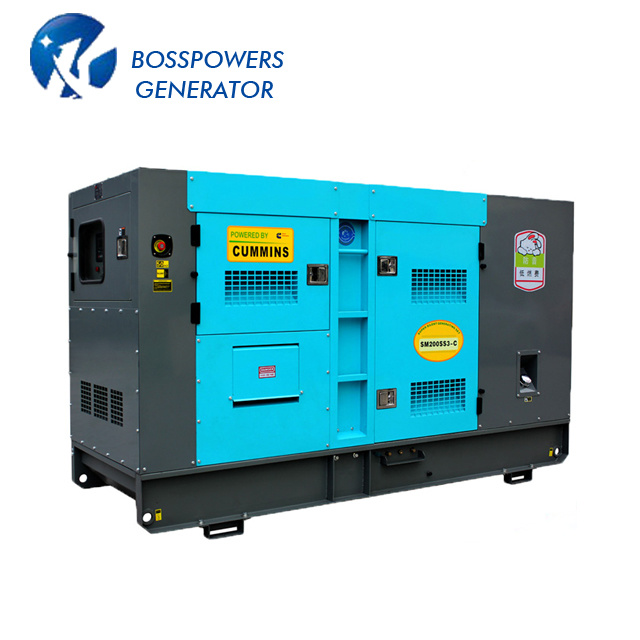

Diesel Generator Water Cool Electric Power Plant Extra Filter

Quantity:




Inquire Add to Basket

Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Speed:
Speed

Model NO.:
BS-SD
Conditions of Use:
Land Use
Usage:
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit:
Low Noise
Excitation Mode:
AC Rotating Exciter
Engine:
Sdec
Alternator:
Stamford
Controller:
Smartgen, Deepsea...
Starting Method:
Electric Start
Power:
8kw - 32kw
ATS:
Optional
Color:
as Per Request
Frequency:
50Hz/60Hz
Voltage:
400V 380V
Transport Package:
Packed in Plywood Cases or Wooden Cases or Foam, E
Specification:
As for power
Trademark:
BOSSPOWER
Origin:
China
HS Code:
85021100
Production Capacity:
100 Sets / Month
Samples:
US$ 3000/Piece 1 Piece(Min.Order) | Request Sample

Product Description

PRODUCT DESCRIPTION

Frequency: 50HZ;Rotating speed: 1500Rpm;
Model	Power(KW)	Capacity(KVA)	Rated current(A)	Engine Model	Copy Stamford Type
BS-Q10	8	10	14.4	QC380D	BS164B
BS-Q10	8	10	14.4	QC385D	BS164B
BS-Q14	10.8	13.5	19.5	QC480D	BS164C
BS-Q16	12.8	16	23	N485D	BS164D
BS-Q20	16	20	28.9	QC490D	BS184E
BS-Q25	20	25	36	QC498D	BS184F
BS-Q31	25	31	45	QC4102D	BS184G
BS-Q38	30	38	54	QC4105D	BS184H

Frequency: 60HZ;Rotating speed: 1800Rpm;
Model	Power(KW)	Capacity(KVA)	Rated current(A)	Engine Model	Copy Stamford Type
BS-Q13	10	13	18	QC385D	164B
BS-Q17	14	17	25.3	QC480D	164C
BS-Q20	16	20	28.9	N485D	164D
BS-Q25	20	25	36	QC490D	184E
BS-Q30	24	30	43.3	QC498D	184E
BS-Q40	32	40	57.7	QC4102D	184G

More specific parameters to choose.

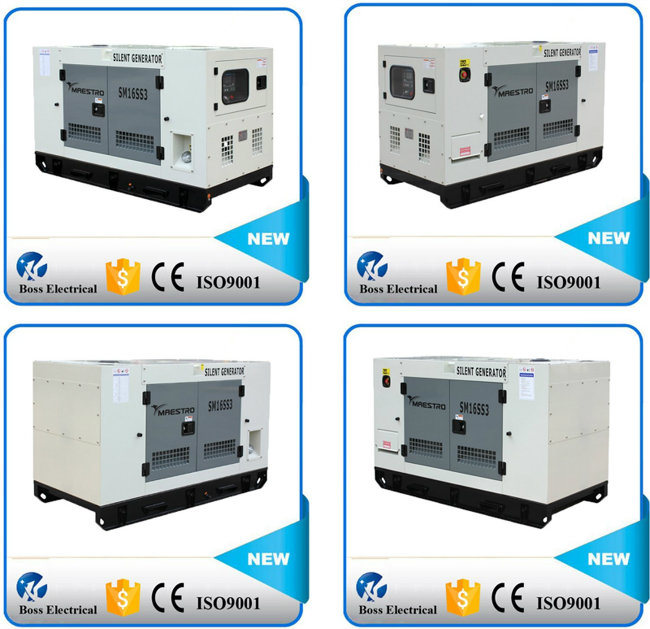

PRODUCT SHOWS

PRODUCT ADVANTAGE

(1)The silent canopy we use cold-rolled sheet, all positions are stronger.

(2)Our spraying plastics all go through pre-treatment of pickling and phosphating, so that the surface of the

painting will not change color even if placed outside for five years.

(3)Canopy color painted by customer's requirement.

(4)Strict test including 50% load,75% load,100% load and 110% Load .

(5)Forklift mouth in base frame for easy loading and discharging.

(6)Logo made by customer's requirement if order quantity ≥10units or a full container.

Diesel Generator Water Cool Electric Power Plant Extra Filter

FAQ

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the
delivery time is longer.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc
Q:What is your MOQ?
A: Above 1pc
Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.
Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your consideration.
Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use. Overloading is prohibited
Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,
our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material
except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration,
our company provides cost parts maintenance for gen-set.
