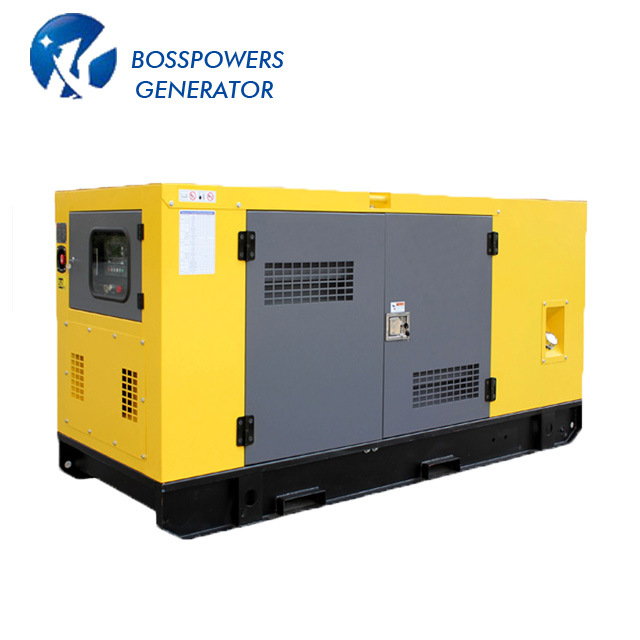

Heavy Duty Power 3 Phase Mtu Container Silent Diesel Generator 1250kVA

Quantity:




Inquire Add to Basket

Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Speed:
Speed

Model NO.:
BS-MU1250
Conditions of Use:
Land Use
Usage:
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit:
Low Noise
Excitation Mode:
AC Rotating Exciter
Engine:
Mtu
Alternator:
Stamford
Controller:
Smartgen, Deepsea...
Starting Method:
Electric Start
Power:
220kw - 1800kw
ATS:
Optional
Color:
as Per Request
Frequency:
50Hz/60Hz
Voltage:
400V 380V
Transport Package:
Packed in Plywood Cases or Wooden Cases or Foam, E
Specification:
As for power
Trademark:
BOSSPOWER
Origin:
China
HS Code:
85021300
Production Capacity:
100 Sets / Month
Samples:
US$ 160000/Piece 1 Piece(Min.Order) | Request Sample

Product Description

PRODUCT DESCRIPTION

Frequency: 50HZ;Rotating speed: 1500Rpm
Model	Power(KW)	Capacity(KVA)	Rated current(A)	Engine Model	Stamford
BS-MU275	220	275	396.9	6R1600G10F	HCI444D
BS-MU313	250	313	451.1	6R1600G20F	HCI444ES
BS-MU375	300	375	541.3	8V1600G10F	HCI444FS
BS-MU400	320	400	577.4	8V1600G20F	HCI444F
BS-MU450	360	450	649.5	10V1600G10F	HCI544C
BS-MU500	400	500	721.7	10V1600G20F	HCI544C
BS-MU600	480	600	866.1	12V1600G10F	HCI544E
BS-MU656	520	656	938.2	12V1600G20F	HCI544F
BS-MU656	525	656	947.2	12V2000G25	HCI544F
BS-MU800	640	800	1154.7	12V2000G65	LVI634C
BS-MU913	730	913	1317.1	16V2000G25	LVI634D
BS-MU1000	800	1000	1443.4	16V2000G65	LVI634E
BS-MU1125	900	1125	1623.8	18V2000G65	LVI634F
BS-MU1250	1000	1250	1804.3	18V2000G26F	LVI634G
BS-MU1375	1100	1375	1984.7	12V4000G23R	PI734B
BS-MU1650	1320	1650	2381.6	12V4000G23	PI734D
BS-MU1813	1450	1813	2616.2	12V4000G63	PI734E
BS-MU2063	1650	2063	2977.0	16V4000G23	PI734F
BS-MU2250	1800	2250	3247.7	16V4000G63	PI734G

More specific parameters to choose.

PRODUCT SHOWS

PRODUCT ADVANTAGE

(1)The silent canopy we use cold-rolled sheet, all positions are stronger.

(2)Our spraying plastics all go through pre-treatment of pickling and phosphating, so that the surface of the

painting will not change color even if placed outside for five years.

(3)Canopy color painted by customer's requirement.

(4)Strict test including 50% load,75% load,100% load and 110% Load .

(5)Forklift mouth in base frame for easy loading and discharging.

(6)Logo made by customer's requirement if order quantity ≥10units or a full container.

Heavy Duty Power 3 Phase Mtu Container Silent Diesel Generator 1250kVA

FAQ

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the
delivery time is longer.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc
Q:What is your MOQ?
A: Above 1pc
Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.
Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your consideration.
Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use. Overloading is prohibited
Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,
our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material
except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration,
our company provides cost parts maintenance for gen-set.
