Made in China 135kw 1800rpm Yto Diesel Electrical Generator Soundproof

Quantity:




Inquire Add to Basket

Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Speed:
Speed

Model NO.:
BS-YT170
Conditions of Use:
Land Use
Usage:
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit:
Low Noise
Excitation Mode:
AC Rotating Exciter
Engine:
Yto Lr6m3l-D
Alternator:
Stamford
Controller:
Smartgen, Deepsea...
Starting Method:
Electric Start
Power:
135kw/170kVA
ATS:
Optional
Color:
as Per Request
Frequency:
60Hz
Voltage:
480V 440V 220
Rpm:
1800rpm
Transport Package:
Packed in Plywood Cases or Wooden Cases or Foam, E
Specification:
As for power
Trademark:
BOSSPOWER
Origin:
China
HS Code:
85021200
Production Capacity:
100 Sets / Month
Samples:
US$ 9500/Piece 1 Piece(Min.Order) | Request Sample

Product Description

PRODUCT DESCRIPTION

Frequency: 50HZ;Rotating speed: 1500Rpm
Model	Power(KW)	Capacity(KVA)	Rated current(A)	Engine Model	Stamford Type
BS-YT31	25	31	45.10681293	YT3B2-D	BS184G
BS-YT38	30	37.5	54.12817552	YT3A2Z-D	BS184H
BS-YT50	40	50	72.17090069	LR4B5-D	BS224D
BS-YT63	50	62.5	90.21362587	YT4B2Z-D	BS224E
BS-YT65	52	65	93.8221709	LR4B3Z-D	BS224F
BS-YT94	75	94	135.3204388	LR4M3L-D	BS274C
BS-YT100	80	100	144.3418014	LR4N5LP-D	BS274C
BS-YT125	100	125	180.4272517	LR6A3L-D	BS274D
BS-YT150	120	150	216.5127021	LR6B3L-D	BS274F
BS-YT163	130	163	234.5554273	LR6M3L-D	BS274F
BS-YT200	160	200	288.6836028	YM6H4L-D	BS274H
BS-YT225	180	225	324.7690531	YM6H4LF-D	BS274J
BS-YT250	200	250	360.8545035	YM6S4L-D	BS274K
BS-YT275	220	275	396.9399538	YM6S4LF-D	BS314D
BS-YT313	250	313	451.0681293	YM6S9L-D	BS314ES
BS-YT350	280	350	505.1963048	YM6S9L-DB	BS314FS
BS-YT375	300	375	541.2817552	YM6S9LF-D	BS314F
BS-YT400	320	400	577.3672055	YM6S9LF-DA	BS354C

More specific parameters to choose.

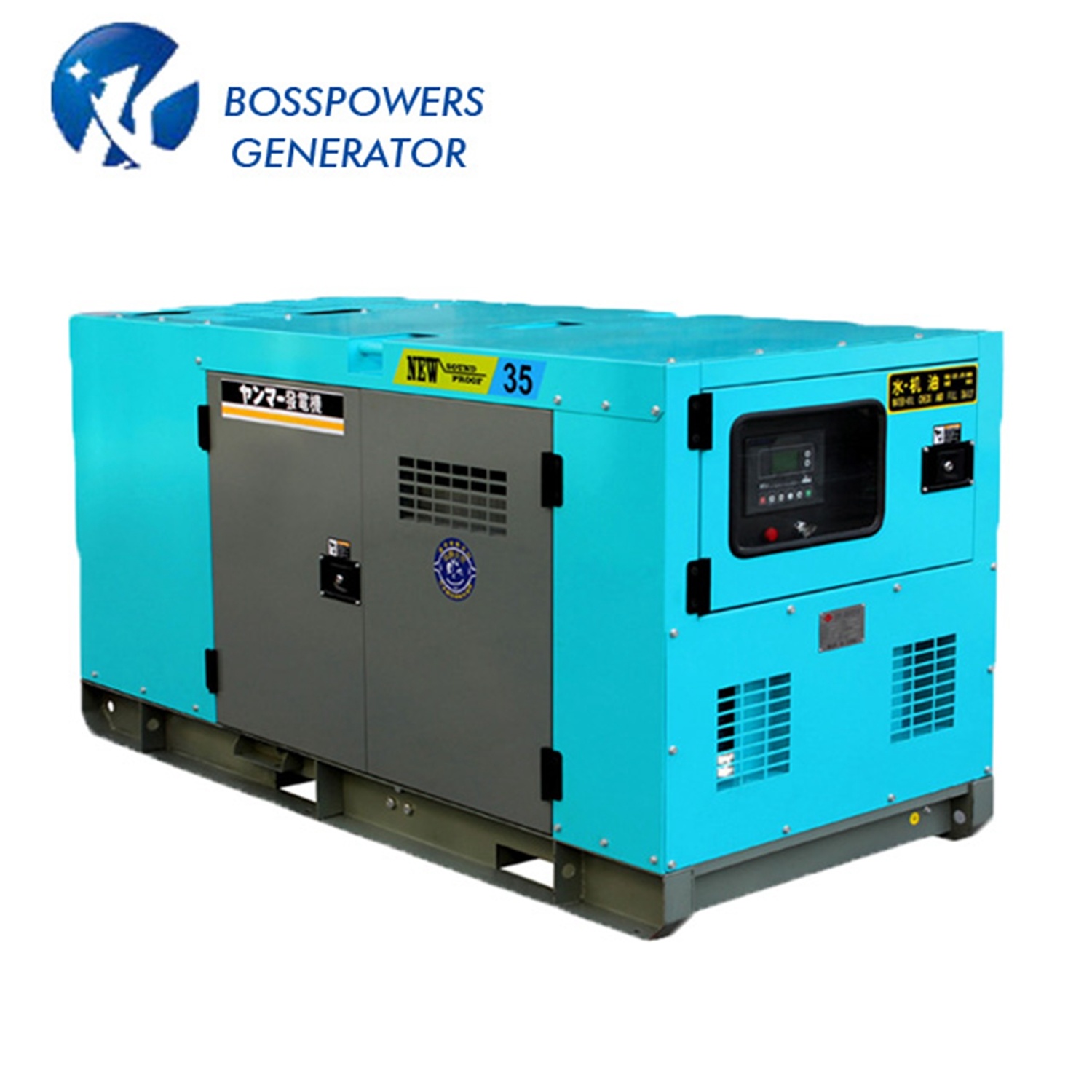

PRODUCT SHOWS

PRODUCT ADVANTAGE

(1)The silent canopy we use cold-rolled sheet, all positions are stronger.

(2)Our spraying plastics all go through pre-treatment of pickling and phosphating, so that the surface of the

painting will not change color even if placed outside for five years.

(3)Canopy color painted by customer's requirement.

(4)Strict test including 50% load,75% load,100% load and 110% Load .

(5)Forklift mouth in base frame for easy loading and discharging.

(6)Logo made by customer's requirement if order quantity ≥10units or a full container.

Made in China 135kw 1800rpm Yto Diesel Electrical Generator Soundproof

FAQ

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the
delivery time is longer.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc
Q:What is your MOQ?
A: Above 1pc
Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.
Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your consideration.
Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use. Overloading is prohibited
Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,
our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material
except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration,
our company provides cost parts maintenance for gen-set.
