Home » Products » Diesel Generator Set » MITSUBISHI Series » Mitsubishi 540kw 680kVA Commercial Industrial Diesel Power Generator

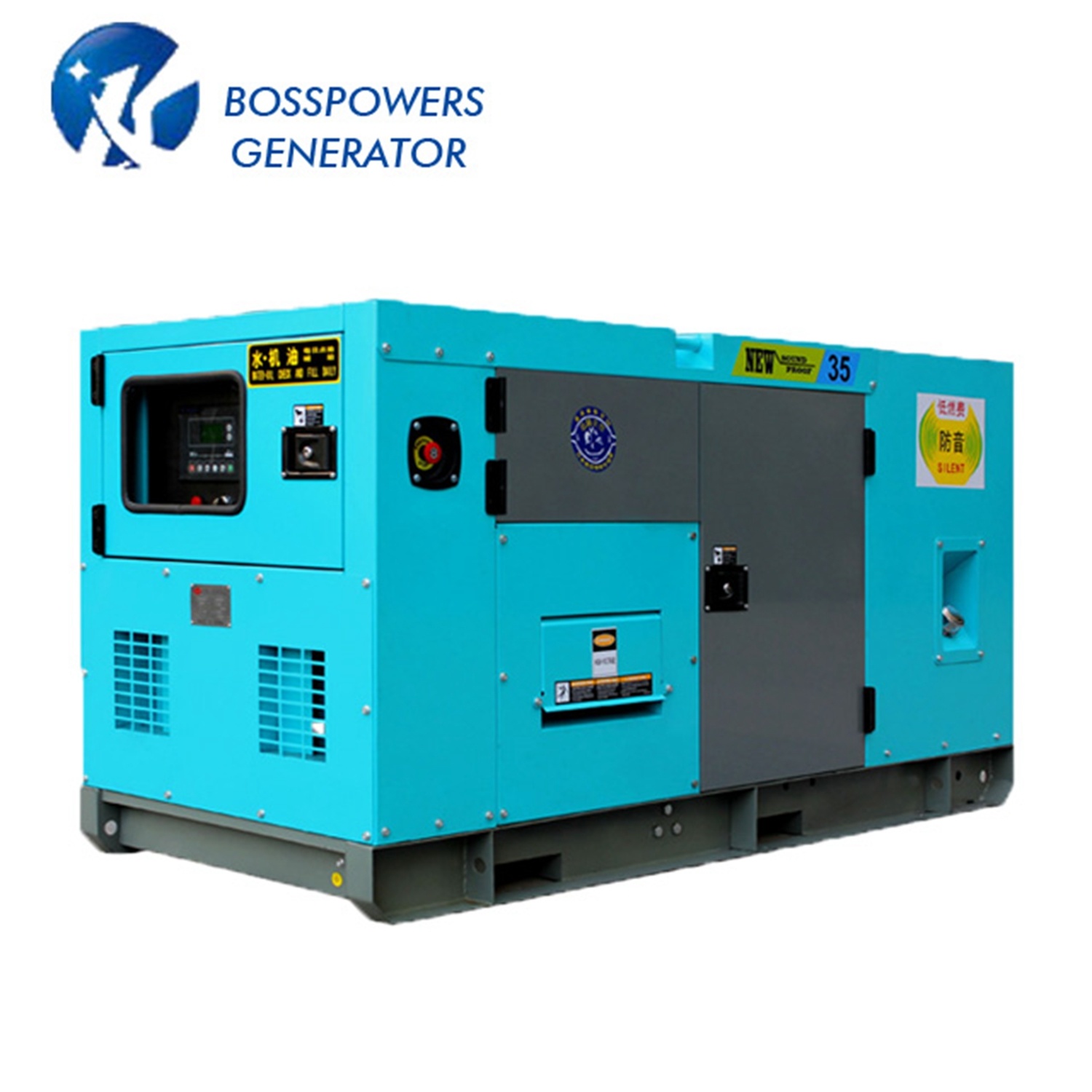

Mitsubishi 540kw 680kVA Commercial Industrial Diesel Power Generator

Quantity:




Inquire Add to Basket

Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Speed:
Speed

Model NO.:
BS-MHI675
Conditions of Use:
Land Use
Usage:
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit:
Low Noise
Excitation Mode:
AC Rotating Exciter
Engine:
Mitsubishi S6r2-Pta
Alternator:
Stamford
Controller:
Smartgen, Deepsea...
Starting Method:
Electric Start
Power:
540kw/675kVA
ATS:
Optional
Color:
as Per Request
Frequency:
50Hz
Voltage:
400V 380V
Transport Package:
Packed in Plywood Cases or Wooden Cases or Foam, E
Specification:
As for power
Trademark:
BOSSPOWER
Origin:
China
HS Code:
850213100
Production Capacity:
100 Sets / Month
Samples:
US$ 52000/Piece 1 Piece(Min.Order) | Request Sample

Product Description

PRODUCT DESCRIPTION

Frequency: 50HZ;Rotating speed: 1500Rpm
Model	Power(KW)	Capacity(KVA)	Rated current(A)	Engine Model	Stamford
BS-MHI6	5	6	9.0	L3E-65SAG	PI044D
BS-MHI10	8	10	14.4	S312-65SAG	PI044E
BS-MHI15	12	15	21.7	S4L2-65SAG	PI044F
BS-MHI20	16	20	28.9	S4Q2-65SAG	PI144E
BS-MHI30	24	30	43.3	S4S-65SAG	PI144F
BS-MHI43	34	43	61.3	S4S-DT65SAG	PI144J
BS-MHI45	36	45	65.0	S4K-D65SAG	PI144K
BS-MHI60	48	60	86.6	S4K-DT65SAG	73108
BS-MHI73	58	73	104.6	S6K-D65SAG	79006
BS-MHI94	75	94	135.3	S6K-DT65SAG	87477
BS-MHI67550HZ	540	675	974.3	S6R2-PTA	368594
BS-MHI75050HZ	600	750	1082.6	S6R-PTAA	466005
BS-MHI80050HZ	640	800	1154.7	S12A2-PTA	#VALUE!
BS-MHI106350HZ	850	1063	1533.6	S12H-PTA	#VALUE!
BS-MHI125050HZ	1000	1250	1804.3	S12R-PTA	838345
BS-MHI137550HZ	1100	1375	1984.7	S12R-PTA2	PI734B
BS-MHI150050HZ	1200	1500	2165.1	S12R-PTAA2	PI734C
BS-MHI175050HZ	1400	1750	2526.0	S16R-PTA	PI734D
BS-MHI187550HZ	1500	1875	2706.4	S16R-PTA2	PI734E
BS-MHI200050HZ	1600	2000	2886.8	S16R-PTAA2	PI734F
BS-MHI225050HZ	1800	2250	3247.7	S16R2-PTAW	PI734G

More specific parameters to choose.

PRODUCT SHOWS

PRODUCT ADVANTAGE

(1)The silent canopy we use cold-rolled sheet, all positions are stronger.

(2)Our spraying plastics all go through pre-treatment of pickling and phosphating, so that the surface of the

painting will not change color even if placed outside for five years.

(3)Canopy color painted by customer's requirement.

(4)Strict test including 50% load,75% load,100% load and 110% Load .

(5)Forklift mouth in base frame for easy loading and discharging.

(6)Logo made by customer's requirement if order quantity ≥10units or a full container.

Mitsubishi 540kw 680kVA Commercial Industrial Diesel Power Generator

FAQ

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the
delivery time is longer.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc
Q:What is your MOQ?
A: Above 1pc
Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.
Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your consideration.
Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use. Overloading is prohibited
Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,
our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material
except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration,
our company provides cost parts maintenance for gen-set.
