Home » Products » Diesel Generator Set » WEIFANG RICARDO Series » Super Silent Generator Ricardo Weifang Diesel Generator Set

Super Silent Generator Ricardo Weifang Diesel Generator Set

Quantity:




Inquire Add to Basket

Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Speed:
1500rpm/1800rpm

Model NO.:
BS-W88
Conditions of Use:
Land Use
Usage:
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit:
Low Noise, Automation Type
Excitation Mode:
AC Rotating Exciter
Engine:
Weifang
Alternator:
Stamford,Leroy Somer,Bosspowers Stamford,Meccalte
Genset Type:
Open, Super Silent, Trailer, Container
Power:
12.8kw~350kw
Control System:
ATS System, Parallel Operation
Controller:
Smartgen,Deepsea,Comap
Starting Method:
Electric Start
Voltage:
480V,440V,400V,380V,230V,220V
Color:
White,Blue,Yellow,Red,Grey,Green
Frequency:
50Hz/60Hz
Standards:
Ce, ISO, IEC34, GB755
Warranty:
One Year or 1000 Hours
Additional:
Water Heater,Oil Preheating,Oil-Water Separator
Transport Package:
Wrapping Film or Plywood Case
Specification:
As for power
Trademark:
BOSSPOWER
Origin:
China
HS Code:
8502120000
Production Capacity:
200 Sets / Month
Samples:
US$ 1500/Piece 1 Piece(Min.Order) | Request Sample

Product Description

Factory Price!!!
WeiFang/Ricardo Engine with Copy Stamford Alternator:
Power Range From 12.8KW to 350KW.

PRODUCT DESCRIPTION

Frequency: 50HZ;Rotating speed: 1500Rpm
Model	Power(KW)	Capacity(KVA)	Rated current(A)	Engine Model	Copy Stamford Type
BS-W16	12.8	16	23.1	ZH490	BS164D
BS-W20	16	20	28.9	ZH490	BS184E
BS-W25	20	25	36.1	K4100D	BS184F
BS-W30	24	30	43.3	K4100D	BS184G
BS-W38	30	37.5	54.1	K4100ZD	BS184H
BS-W50	40	50	72.2	K4102ZD	BS224D
BS-W63	50	62.5	90.2	R4105ZD	BS224E
BS-W88	70	87.5	126.3	R6105ZD	BS224G
BS-W100	80	100	144.3	R6105AZD	BS274C
BS-W120	96	120	173.2	R6105AZLD	BS274D
BS-W140	112	140	202.1	R6105IZLD	BS274E
BS-W163	130	162.5	234.6	R6110ZLD	BS274F
BS-W225	180	225	324.8	HD6126ZLD	BS274J
BS-W250	200	250	360.9	HD6126ZLD	BS274K
BS-W300	240	300	433.0	HD6126ZLD8	BS314D
BS-W325	260	325	469.1	HD6126ZLD9	BS314E
Updating......
Frequency: 60HZ;Rotating speed: 1800Rpm
Model	Power(KW)	Capacity(KVA)	Rated current(A)	Engine Model	Copy Stamford Type
BS-W19	15	18.8	27.1	ZH490	BS164D
BS-W23	18	22.5	32.5	ZH490	BS184E
BS-W25	20	25	36.1	ZH490	BS184E
BS-W30	24	30	43.3	K4100D	BS184G
BS-W35	28	35	50.5	K4100D	BS184G
BS-W38	30	37.5	54.1	K4102D	BS184J
BS-W48	38	47.5	68.6	K4100ZD	BS184J
BS-W50	40	50	72.2	K4102ZD	BS184J
BS-W69	55	68.8	99.2	R4105ZD	BS224D
BS-W75	60	75	108.3	R4105AZLD	BS224E
BS-W94	75	93.8	135.3	R6105ZD	BS224G
BS-W113	90	113	162.4	R6105ZLD	BS274C
BS-W125	100	125	180.4	R6105AZLD	BS274D
BS-W150	120	150	216.5	R6105IZLD	BS274E
BS-W188	150	188	270.6	R6110ZLD	BS274F
BS-W200	160	200	288.7	HD6126ZLD	BS274G
Updating......

More specific parameters to choose and we can provide original Stamford generator.

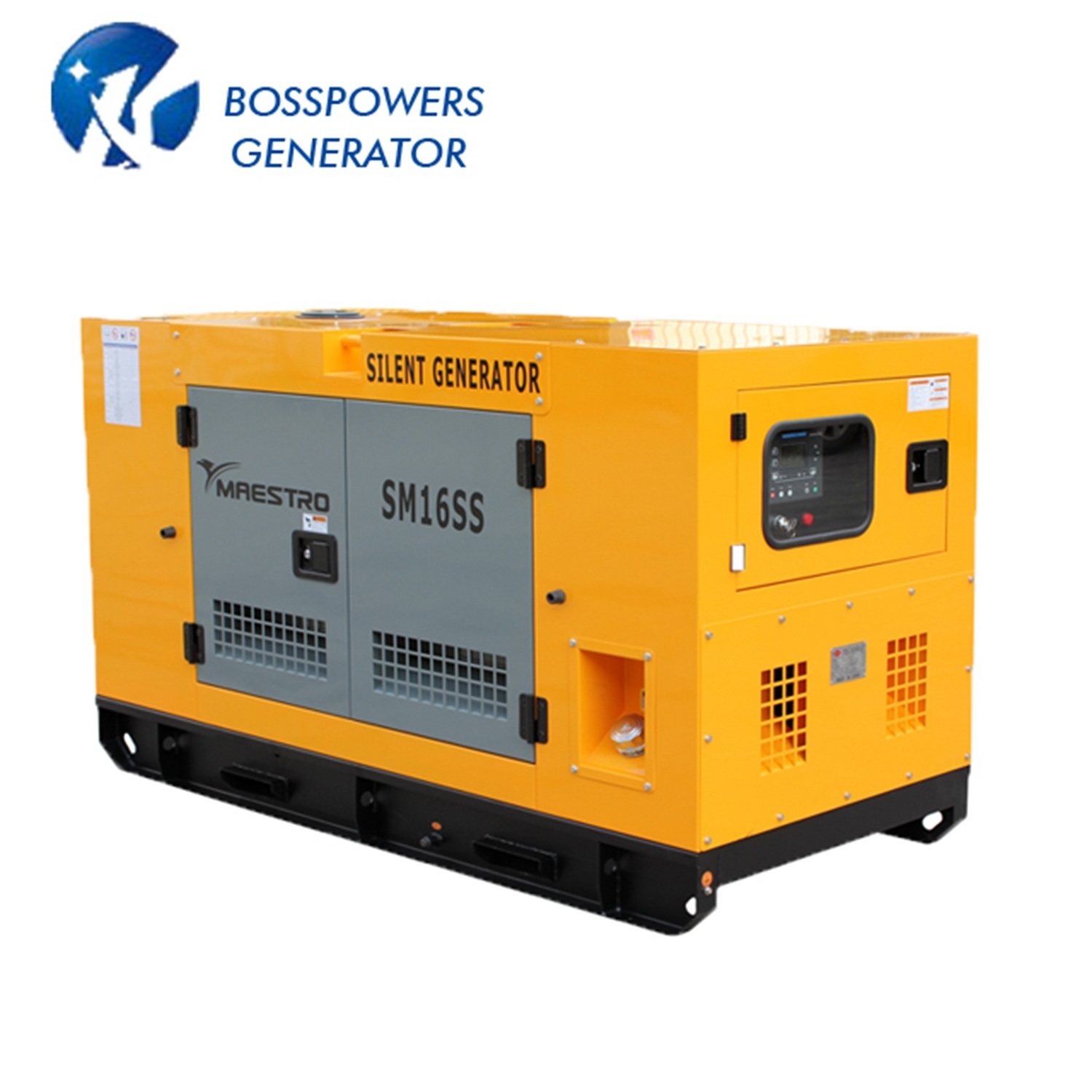

PRODUCT SHOWS

PRODUCT ADVANTAGE

(1)The silent canopy we use cold-rolled sheet, all positions are stronger.

(2)Our spraying plastics all go through pre-treatment of pickling and phosphating, so that the surface of the

painting will not change color even if placed outside for five years.

(3)Canopy color painted by customer's requirement.

(4)Strict test including 50% load,75% load,100% load and 110% Load .

(5)Forklift mouth in base frame for easy loading and discharging.

(6)Logo made by customer's requirement if order quantity ≥10units or a full container.

Super Silent Generator Ricardo Weifang Diesel Generator Set

FAQ

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the
delivery time is longer.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc
Q:What is your MOQ?
A: Above 1pc
Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.
Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your consideration.
Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use. Overloading is prohibited
Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,
our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material
except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration,
our company provides cost parts maintenance for gen-set.
