Home » Products » Diesel Generator Set » WEIFANG RICARDO Series » Weifang 112kw Soundproof Electric Power Generation Emergency Generator

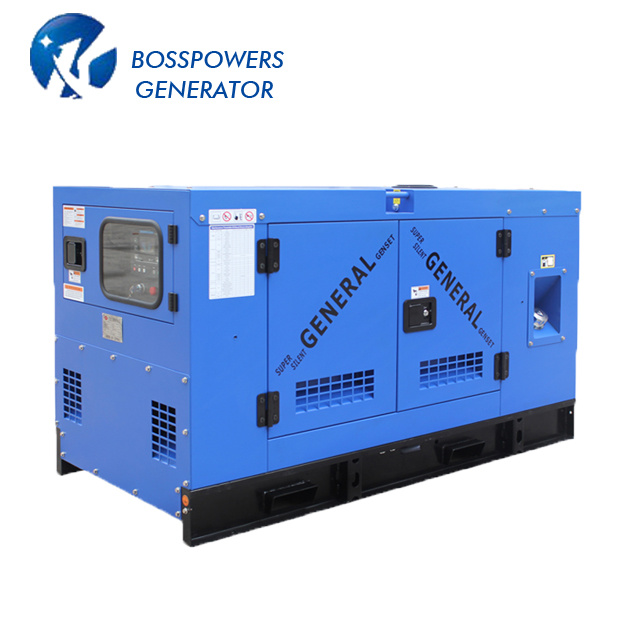

Weifang 112kw Soundproof Electric Power Generation Emergency Generator

Quantity:



Inquire Add to Basket

Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Speed:
1500rpm/1800rpm

Model NO.:
BS-W140
Conditions of Use:
Land Use
Usage:
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit:
Low Noise
Excitation Mode:
AC Rotating Exciter
Engine:
Weifang Ricardo
Alternator:
Stamford Type or St/Stc
Controller:
Boss Brand,Smartgen,Deepsea...
Starting Method:
Electric Start
Power:
12kw - 260kw
ATS:
Optional
Color:
as Per Request
Frequency:
50Hz/60Hz
Voltage:
400V 380V
Transport Package:
Packed in Plywood Cases or Wooden Cases or Foam, E
Specification:
As for power
Trademark:
BOSSPOWER
Origin:
China
HS Code:
85021100
Production Capacity:
100 Sets / Month
Samples:
US$ 2000/Piece 1 Piece(Min.Order) | Request Sample

Product Description

PRODUCT DESCRIPTION

GENSET MODEL		BS-W140
RATED OUTPUT(KW)		112KW
MAX OUTPUT (KW)		123.2KW
PHASE		3
RATED VOLTAGE(V)		50HZ/1500RPM,400
RATED CURRENT(A)		202
GENSET DIMENSIONS(MM)		289011101610
WEIGHT(KGS)		1600
ENGINE	TYPE	R6105IZLD
	12h POWER (KVA)	165
	1hour Power (KVA)	182
	Displacement(L)	5.90
	Compression Ratio	16:01
	FUEL CONSUMPTION(g/kw.h)	≤239
	STARTING TYPE	Electric starting/DC24V
	Bore×Stroke (MM×MM)	105x125
	CYLINDER NUMBERS	6-cylinders 4-cycle direct injection,water cooled, in line
ALTERNATOR	TYPE	Copy Stamford-BS274E
	RATED POWER(KW)	112KW
	MAX POWER(KW)	123.2KW
	POWER FACTOR (cos ∮)	0.8
	EXCITATION MODE	single-bearing with SAE ,Brushless sychronous ,Three harmonic exciting,
	AVR MODEL	SX460
	INSULATION CLASS	H CLASS
	IP LEVEL (PROTECTION)	IP23
	CONFIGURATION TYPE	IMB35 WITH FLANGE, 2/3 pitch design
	DIMENSION(mm)	947580870
	weight (KGS)

The data just for reference.

PRODUCT SHOWS

PRODUCT ADVANTAGE

(1)The silent canopy we use cold-rolled sheet, all positions are stronger.

(2)Our spraying plastics all go through pre-treatment of pickling and phosphating, so that the surface of the

painting will not change color even if placed outside for five years.

(3)Canopy color painted by customer's requirement.

(4)Strict test including 50% load,75% load,100% load and 110% Load .

(5)Forklift mouth in base frame for easy loading and discharging.

(6)Logo made by customer's requirement if order quantity ≥10units or a full container.

Weifang 112kw Soundproof Electric Power Generation Emergency Generator

FAQ

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the
delivery time is longer.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc
Q:What is your MOQ?
A: Above 1pc
Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.
Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your consideration.
Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use. Overloading is prohibited
Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,
our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material
except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration,
our company provides cost parts maintenance for gen-set.
