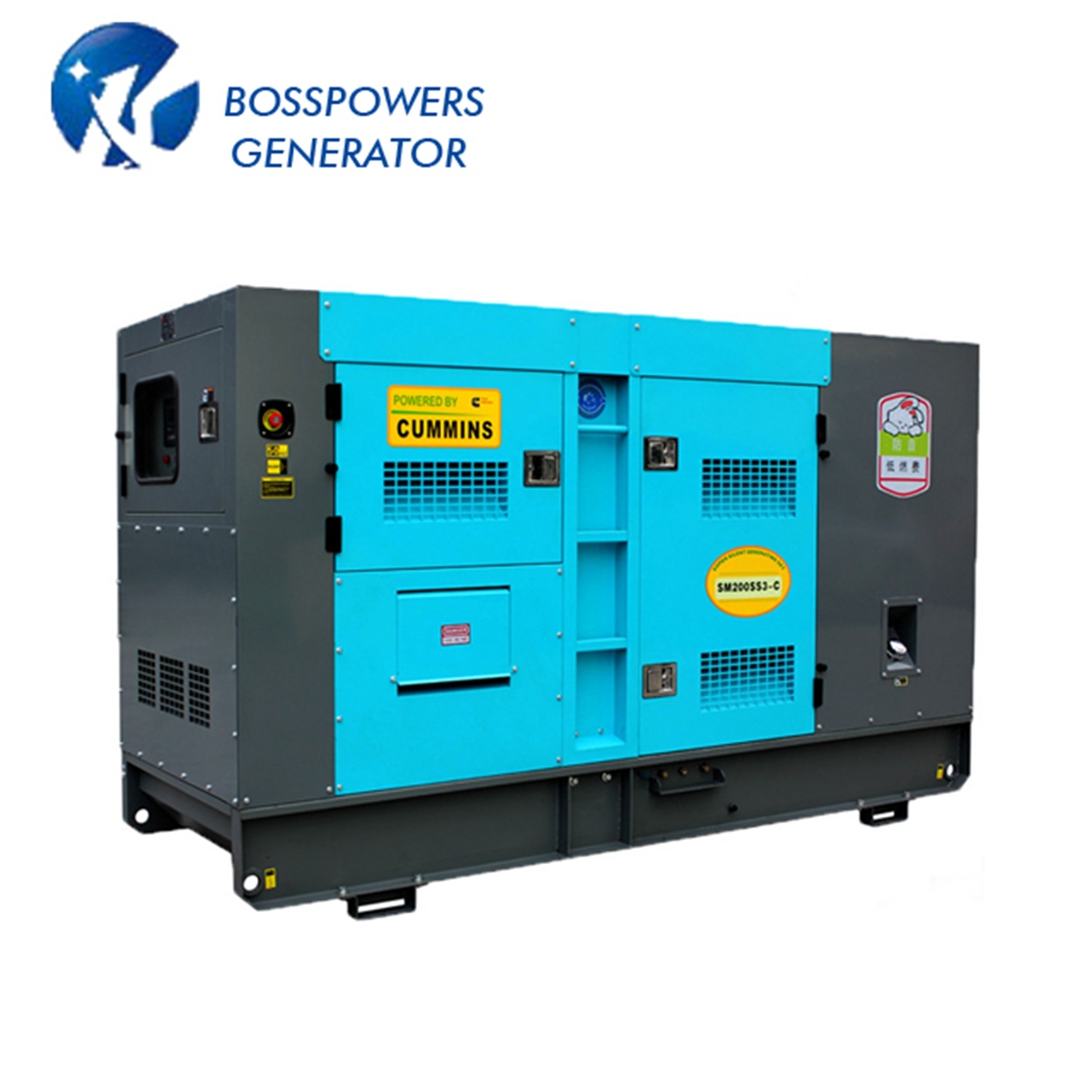

Self-Starting Diesel Generator
Fixed
Four Stroke
Water Cooling
AC Three Phase
Speed
BS-C100
Land Use
Common Units, Standby Unit, Emergency Crew
Low Noise
AC Rotating Exciter
Dcec
Stamford
Smartgen,Deepsea...
Electric Start
20kw - 2000kw
Optional
as Per Request
50Hz/60Hz
Packed in Plywood Cases or Wooden Cases or Foam, E
As for power
BOSSPOWER
China
85021200
100 Sets / Month
US$ 9000/Piece 1 Piece(Min.Order) | Request Sample
PRODUCT DESCRIPTION |
Genset Model | BS-C100 | ||
Prime Power (kw/kva) | 80 / 100 | Standby Power(kw/kva) | 88 / 110 |
Voltage (v) | 400/230 | Rated Speed (rpm) | 1500 |
Frequency (Hz) | 50 | Rated Current (A) | 144.3 |
Connection: | 3 phase 4 wire | Power Factor: | 0.8 |
Engine Model: | 6BT5.9-G2 | Alternator Model: | UCI274C |
Net Weight (kgs)-Open | 1450 | Net Weight (kgs)-Silent | 1900 |
Dimensions (mm)-Open | 2150×820×1450 | Dimensions (mm)-Silent | 2700X1050X1400 |
Engine Parameter: | |
Manufacturer/Model: Aspiration: Fuel System: Cylinder numbers Displacement: Bore x Stroke Compression Ratio: Max. Power: Governing System: | DCEC, 6BT5.9-G, 4 stroke Turbocharged, Inercooled A/AD Fuel Pump, 6 cylinders in line 5.9 L 102 x 120 mm 17.5 : 1 101KW / 136HP Machanical/Electronic |
Exhaust System | |
Exhaust Volume: Exhaust temperature: Max. Allowed Back Pressure: | 16.8 m³/min 565 ºC 10 KPa |
Intake System | |
Max. Allowed Pressure: Gas Volume: Air Flow: | 6.35 kPa 6.48 m³/min 158 m³/min |
Fuel System | |
100% Load (Prime): 75% Load(Prime): 50% Load (Prime): | 214 g/kw.h 216 g/kw.h 217 g/kw.h |
Lube System | |
Oil Capacity: Oil Consumption: Bottom shell oil capacity: Oil Pressure at rated speed: | 16.4 L ≤4g/kw.h 14.2 L 345 kPa |
Cooling system | |
Coolant Capacity: Thermostat: Max. Water Temperature: | 27 L 82-95ºC 104ºC |
Alternator Parameter: Basic Information | |
The alternators meet the standards of: GB755, BS5000, VDE00530, NEMAMG1-22,IED34-1,CSA22.2 and AS1350 | |
Technical Data: | |
Manufacturer: Phases: Connection: Bearing numbers: Power Factor: Protection Class: Altitude Condition: Excitation: Insulation class/Temp. rise class: Tel. Influence Factor TIF: Tel. Harmonic Factor THF: Steady State Voltage Regulation: Alternator Capacity: Efficiency: Cooling Air Flow: | Stamford UCI274C 3 3 phase 4 wire, Y type 1 0.8 IP23 ≤1000M Brushless, self-excitation H / H <50 <2% ≤±1% 100 KVA 90.4% 0.37 m³/s |
PRODUCT SHOWS |
PRODUCT ADVANTAGE |
FAQ |
CONTACT US |
PRODUCT DESCRIPTION |
Genset Model | BS-C100 | ||
Prime Power (kw/kva) | 80 / 100 | Standby Power(kw/kva) | 88 / 110 |
Voltage (v) | 400/230 | Rated Speed (rpm) | 1500 |
Frequency (Hz) | 50 | Rated Current (A) | 144.3 |
Connection: | 3 phase 4 wire | Power Factor: | 0.8 |
Engine Model: | 6BT5.9-G2 | Alternator Model: | UCI274C |
Net Weight (kgs)-Open | 1450 | Net Weight (kgs)-Silent | 1900 |
Dimensions (mm)-Open | 2150×820×1450 | Dimensions (mm)-Silent | 2700X1050X1400 |
Engine Parameter: | |
Manufacturer/Model: Aspiration: Fuel System: Cylinder numbers Displacement: Bore x Stroke Compression Ratio: Max. Power: Governing System: | DCEC, 6BT5.9-G, 4 stroke Turbocharged, Inercooled A/AD Fuel Pump, 6 cylinders in line 5.9 L 102 x 120 mm 17.5 : 1 101KW / 136HP Machanical/Electronic |
Exhaust System | |
Exhaust Volume: Exhaust temperature: Max. Allowed Back Pressure: | 16.8 m³/min 565 ºC 10 KPa |
Intake System | |
Max. Allowed Pressure: Gas Volume: Air Flow: | 6.35 kPa 6.48 m³/min 158 m³/min |
Fuel System | |
100% Load (Prime): 75% Load(Prime): 50% Load (Prime): | 214 g/kw.h 216 g/kw.h 217 g/kw.h |
Lube System | |
Oil Capacity: Oil Consumption: Bottom shell oil capacity: Oil Pressure at rated speed: | 16.4 L ≤4g/kw.h 14.2 L 345 kPa |
Cooling system | |
Coolant Capacity: Thermostat: Max. Water Temperature: | 27 L 82-95ºC 104ºC |
Alternator Parameter: Basic Information | |
The alternators meet the standards of: GB755, BS5000, VDE00530, NEMAMG1-22,IED34-1,CSA22.2 and AS1350 | |
Technical Data: | |
Manufacturer: Phases: Connection: Bearing numbers: Power Factor: Protection Class: Altitude Condition: Excitation: Insulation class/Temp. rise class: Tel. Influence Factor TIF: Tel. Harmonic Factor THF: Steady State Voltage Regulation: Alternator Capacity: Efficiency: Cooling Air Flow: | Stamford UCI274C 3 3 phase 4 wire, Y type 1 0.8 IP23 ≤1000M Brushless, self-excitation H / H <50 <2% ≤±1% 100 KVA 90.4% 0.37 m³/s |
