Super Silent Diesel Generator Set with Isuzu 30kVA ATS

Quantity:




Inquire Add to Basket

Type:
Self-Starting Diesel Generator
Installation Method:
Fixed
Stroke:
Four Stroke
Cooling Method:
Water Cooling
Output Type:
AC Three Phase
Speed:
Speed

Model NO.:
BS-IZ30
Conditions of Use:
Land Use
Usage:
Common Units, Standby Unit, Emergency Crew
Landuse Type of Unit:
Low Noise
Excitation Mode:
AC Rotating Exciter
Engine:
Yanmar
Alternator:
Stamford
Controller:
Smartgen,Deepsea...
Starting Method:
Electric Start
Power:
5kw - 55kw
ATS:
Optional
Color:
as Per Request
Frequency:
50Hz/60Hz
Voltage:
400V 380V
Transport Package:
Packed in Plywood Cases or Wooden Cases or Foam, E
Specification:
As for power
Trademark:
BOSSPOWER
Origin:
China
HS Code:
85021100
Production Capacity:
200sets / Month
Samples:
US$ 5000/Piece 1 Piece(Min.Order) | Request Sample

Product Description

PRODUCT DESCRIPTION

Frequency: 50HZ;Rotating speed: 1500Rpm
Model	Power(KW)	Capacity(KVA)	Rated current(A)	Engine Model	Copy Stamford Type
BS-YM6	5	6.25	7.9	3TNM68-GGE	BS164A
BS-YM9	7.2	9	11.8	3TNV76-GGE	BS164A
BS-YM11	8.8	11	14.3	3TNV82A-GGE	BS164B
BS-YM13	10.8	13.5	17.7	3TNV88-GGE	BS164C
BS-YM16	12.8	16	20.4	3TNV84T-GGE	BS164D
BS-YM18	14	17.5	23.6	4TNV88-GGE	BS184E
BS-YM21	16	20	28.5	4TNV84T-GGE	BS184E
BS-YM34	28	35	47.6	4TNV98-GGE	BS184H
BS-YM43	32	40	59.5	4TNV98T-GGE	BS184J
BS-YM50	40	50	70.9	4TNV106-GGE	BS224D
BS-YM56	45	56	82.6	4TNV106T-GGE	BS224E

Frequency: 60HZ;Rotating speed: 1800Rpm
Model	Power(KW)	Capacity(KVA)	Rated current(A)	Engine Model	Copy Stamford Type
BS-YM6	5	6	7	3TNM68-GGE	164A
BS-YM9	7	9	10	3TNV76-GGE	164B
BS-YM12	9	12	12	3TNV82A-GGE	164C
BS-YM15	12	15	15	3TNV88-GGE	164D
BS-YM17	14	17	24	3TNV84T-GGE	184E
BS-YM21	17	21	18	4TNV88-GGE	184E
BS-YM26	21	26	24	4TNV84T-GGE	184G
BS-YM41	33	41	36	4TNV98-GGE	224D
BS-YM51	41	51	45	4TNV98T-GGE	224E
BS-YM60	48	60	53	4TNV106-GGE	224F
BS-YM69	55	69	61	4TNV106T-GGE	224G

More specific parameters to choose.

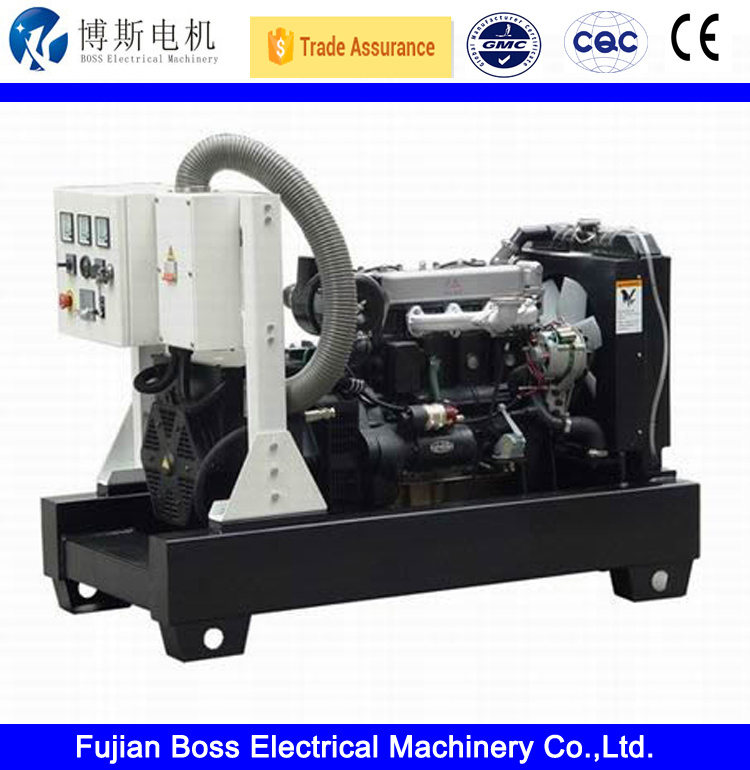

PRODUCT SHOWS

PRODUCT ADVANTAGE

(1)The silent canopy we use cold-rolled sheet, all positions are stronger.

(2)Our spraying plastics all go through pre-treatment of pickling and phosphating, so that the surface of the

painting will not change color even if placed outside for five years.

(3)Canopy color painted by customer's requirement.

(4)Strict test including 50% load,75% load,100% load and 110% Load .

(5)Forklift mouth in base frame for easy loading and discharging.

(6)Logo made by customer's requirement if order quantity ≥10units or a full container.

Super Silent Diesel Generator Set with Isuzu 30kVA ATS

FAQ

Q: Do you offer OEM service?
A: Yes
Q: What is your payment term?
A: 30% T/T in advance, the rest payment before shipment. Or irrevocable L/C.
Q: What is your lead time?
A: About 30 days after receiving deposit or original L/C.But if your order with some special design, then the
delivery time is longer.
Q: What certificates do you have?
A: We have CE, ISO. And we can apply for specific certificate for different country such as SONCAP for Nigeria,
CIQ for Egypt, SASO for Saudi Arabia, etc
Q:What is your MOQ?
A: Above 1pc
Q. Which port do you often use when export?
A: Fuzhou Port, or as customer request.
Q.How to choose the power?
A.:Collect all power of your equipments,take the current into your consideration.
Q.What is the difference between Prime power and Standby power?
A.:Prime power is 12hours continous power,one hour 10% over load in every 12 running hours is allowed.
Standby power is the limit value of maximum output for emergency use. Overloading is prohibited
Q.What about the warranty
Guarantee for one year or 1000 hours (accord to whichever reach first) from ex-factory date.During the guarantee period,
our company will provide the free easy damaged spare part for problems caused by our quality of production or raw material
except the damageable spare parts of diesel engine caused by customer's incorrect man made operation.After expiration,
our company provides cost parts maintenance for gen-set.
